SAA4700T

Features: · Adaptive sync slicer with buffered composite sync output VCS· Adaptive data slicer· Data rate clock regenerator· Field selection and line 16 decoding· Startcode and biphase check· Data valid output· Storage of data line information in a 40 bit register bank· I2C-bus transmissionPinoutS...

product image

SAA4700T Picture
See larger image
SeekIC No. : 004483902 Detail

SAA4700T: Features: · Adaptive sync slicer with buffered composite sync output VCS· Adaptive data slicer· Data rate clock regenerator· Field selection and line 16 decoding· Startcode and biphase check· Data v...

SAA4700T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA4700T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Adaptive sync slicer with buffered composite sync output VCS
· Adaptive data slicer
· Data rate clock regenerator
· Field selection and line 16 decoding
· Startcode and biphase check
· Data valid output
· Storage of data line information in a 40 bit register bank
· I2C-bus transmission


Pinout

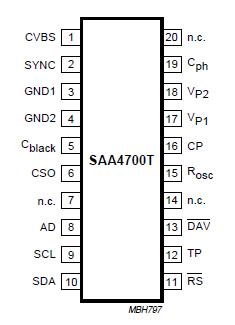

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP1 supply voltage (pin 17) -0.5 6.0 V
VP2 supply voltage (pin 18) -0.5 6.0 V
Tstg storage temperature range -20 125 °C
Tamb operating ambient temperature range 0 +70 °C



Description

The SAA4700T is a bipolar integrated circuit designed for use in dataline receivers and incorporates a dataline slicer and decoder. The slicer extracts the dataline signal from the video signal and regenerates the data clock. SAA4700T also provides signals for the decoder in order to decode the binary data that is transmitted in line 16 of every first field of the composite video signal (video programming signal and video recording programming by Teletext, VPS and VPT systems). The decoded information out of words 5 and 11 to 14 is accessed via the built-in I2C-bus interface. This information about SAA4700T can be used for programming a video cassette recorder in order to start and stop a recording of a television program at the correct aligned time, regardless of a delay or extension in the transmission time of the required program.
