MFG:PHILPS Package Cooled:PLCC44 D/C:07/08+
MFG: PHILPS
Package Cooled: PLCC44
D/C: 07/08+
Description: The memory controller SAA4951 has been designed for high end TV sets using 2fH-technics.The ci...
The memory controller SAA4951 has been designed for high end TV sets using 2fH-technics.
The circuit provides all necessary write, read and clock pulses to control different field memory concepts. Furthermore the drive signals for the horizontal and vertical deflection power stages are generated.
The device is connected to a microcontroller via an 8-bit data bus. The controller receives commands via the I2C-bus. Due to this fact the start and stop conditions of the main output control signals are programmable and the SAA4951 can be set in different function modes depending on the used TV-feature concept.
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT |
| VDD VI Tamb Tstg |
supply voltage input voltage operating ambient temperature storage temperature |
-0.5 -0.5 0 -40 |
+6.0 VDD + 0.5 +70 +125 |
V V °C °C |

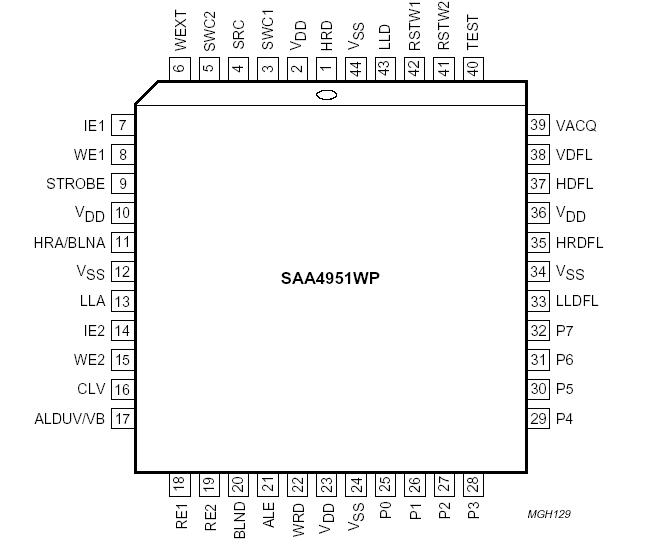

SAA4951
PDF/DataSheet Download
