Purchase SAA4963, In-stock SAA4963 From SeekIC.
MFG:PHI Package Cooled:DIP D/C:05+
Part Number: SAA4963
MFG: PHI
Package Cooled: DIP
D/C: 05+
Description: The SAA4963 is an alignment-free one chip comb filter compatible with NTSC M systems.
- Table of contents:
SAA4963
-
Suppliers
DataSheet
General Description
SAA4963 General Description
The SAA4963 is an alignment-free one chip comb filter compatible with NTSC M systems.
SAA4963 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VCC V ICCA ICCO IDDD ICCPLL IO Ptot Tstg Tamb Ves |
supply voltage input voltage protection threshold (except pin 1) analog supply current analog supply current output buffer digital supply current analog supply current PLL output current at pins 11 and 9 total power dissipation storage temperature operating ambient temperature electrostatic handling (all pins) |
note 1 note 2 |
- -0.3 - - - - - - -25 0 - - |
6.5 VCC + 0.3 17 45 6 2.5 ±15 400 +150 70 ±300 ±2000 |
V V mA mA mA mA mA mW °C °C V V |
1. Machine model: equivalent to discharging a 200 pF capacitor through a 0 W series resistor (0 W means: 2.5 mH + 25 ); ESD classification B in accordance with "UZW-B0/FQ-0601".
2. Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor; ESD classification B in accordance with "UZW-B0/FQ-0601".
SAA4963 Features
· One chip NTSC comb filter
· Time discrete but continuous amplitude signal processing with analog interfaces
· Internal delay lines, filters, clock processing and signal switches
· Alignment-free
· Few external components.
· Time discrete but continuous amplitude signal processing with analog interfaces
· Internal delay lines, filters, clock processing and signal switches
· Alignment-free
· Few external components.

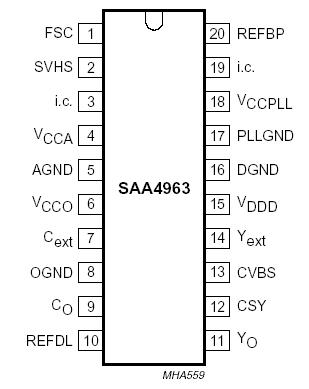

SAA4963 Connection Diagram
SAA4963
