Product Details

Description



Features:

· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)
· 4 : 1 : 1 digital input
· Digital Colour Transient Improvement (DCTI)
· Digital luminance peaking
· Triple 10-bit Digital-to-Analog Converter (DAC)
· Memory controller
· Embedded microprocessor
· 16 kbyte ROM
· 256 byte RAM
· I2C-bus interface
· Synchronous No parity Eight bit Reception and Transmission (SNERT) interface.


Pinout

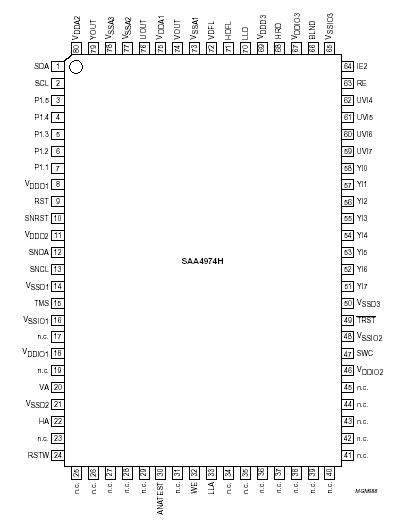

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDDA(1,2) analog supply voltage -0.5 +3.45 V
VDDD(1,2,3) digital supply voltage -0.5 +3.6 V
VDDIO(1,2,3) digital I/O supply voltage -0.5 +5.5 V
Vi input voltage for all I/O pins -0.5 +5.5 V
Tstg storage temperature -20 +150 °C
Tamb operating ambient temperature -20 +70 °C



Description

The SAA4974H is a video processing IC providing a digital YUV 4 : 1 : 1 input interface, analog YUV output, video enhancing features, memory controlling and an embedded 80C51 microprocessor core. It is applicable especially for field rate up-conversion (50 to 100 Hz or 60 to 120 Hz) in cooperation with a 2.9 Mbit field memory. SAA4974H is designed for applications together with:
SAA7111A, VPC3200 (video decoder)
SAA4955/56TJ, TMS4C2972/73 (serial field memories)
SAA4990H (PROZONIC)
SAA4991WP (MELZONIC).
