SAA4979H

Features: · Digital YUV input according to ITU 656 standard· 4 : 2 : 2 field rate upconversion (50 to 100 Hz or 60 to 120 Hz)· 3.5-Mbit embedded DRAM· Sample rate conversion for linear zoom and compression· Panorama mode· Dynamic noise reduction· Noise estimator· Black bar detection· Luminance hor...

product image

SAA4979H Picture
See larger image
SeekIC No. : 004483914 Detail

SAA4979H: Features: · Digital YUV input according to ITU 656 standard· 4 : 2 : 2 field rate upconversion (50 to 100 Hz or 60 to 120 Hz)· 3.5-Mbit embedded DRAM· Sample rate conversion for linear zoom and comp...

SAA4979H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA4979H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Digital YUV input according to ITU 656 standard
· 4 : 2 : 2 field rate upconversion (50 to 100 Hz or 60 to 120 Hz)
· 3.5-Mbit embedded DRAM
· Sample rate conversion for linear zoom and compression
· Panorama mode
· Dynamic noise reduction
· Noise estimator
· Black bar detection
· Luminance horizontal smart peaking
· Digital Colour Transient Improvement (DCTI)
· Triple 10-bit Digital-to-Analog Converter (DAC)
· Line-locked PLL
· Expansion port for SAA4992H and SAA4991WP
· Double window and Picture-In-Picture (PIP) processing
· Embedded 80C51 microcontroller
· 32-Kbyte internal ROM (mask programmable)
· 512-byte internal RAM
· I2C-bus controlled
· Synchronous No parity Eight bit Reception and Transmission (SNERT) interface
· Boundary Scan Test (BST).


Pinout

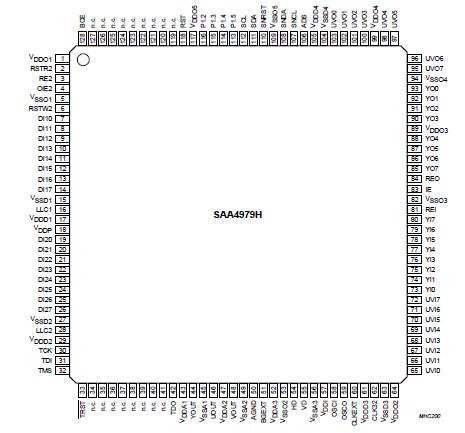

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDD digital supply voltage   -0.5 +4.0 V
VDDA analog supply voltage   -0.5 +4.0 V
VDDI internal I/O supply voltage   -0.5 +4.0 V
VDDO I/O supply voltage VDDD = 3.3 V -0.5 +3.8 V
VDDP supply voltage for protection circuits   -0.5 +5.5 V
VI input voltage for all digital input pins VDDP = 5 V -0.5 +5.5 V
VDDP = 3.3 V -0.5 +3.8 V
VI input voltage for all digital I/O pins   -0.5 +3.8 V
IDD(tot) total supply current   - 300 mA
IO short circuit output current   - 30 mA
Ptot total power dissipation   - 1.2 W
Tstg storage temperature   -25 +150 °C
Tj junction temperature   0 +125 °C
Tamb ambient temperature   0 +70 V
Ves electrostatic handling voltage note 1 -200 +200 V
note 2 -2000 +2000 V

Notes
1. Machine model class B, equivalent to discharging a 200 pF capacitor through a 0 series resistor (0 is actually 0.75 H + 10 ).
2. Human body model class B, equivalent to discharging a 100 pF capacitor through a 1500 series resistor.


Description

The SAA4979H provides an economic stand-alone solution for 4 : 2 : 2 field rate upconversion (50 to 100 Hz or 60 to 120 Hz) including the required field memory combined with picture improvement features and dynamic field based noise reduction. The SAA4979H contains two digital input channels to allow field or frame based picture-in-picture processing. It also offers a feature expansion port for vector based motion estimation and compensation ICs such as SAA4991WP or SAA4992H.
