SAA4998H

` Motion compensated frame rate upconversion of all 1f<sub>H</sub> film and video standards up to 292 active input lines per field:
50 Hz interlaced to 60 Hz progressive {(60p mode for LCD and Plasma Display (PDP) TV}
50 Hz interlaced to 75 Hz interlaced {75i mode for jumbo screens, Projection TV (PTV)}
50 Hz interlaced to 100 Hz interlaced (high-end 100 Hz TV)
50 Hz interlaced to 50 Hz progressive (progressive scan TV and LCD and PDP TV)
60 Hz interlaced to 60 Hz progressive (progressive scan TV and LCD and PDP TV)
60 Hz interlaced to 90 Hz interlaced (jumbo screens, PTV)
60 Hz interlaced to 120 Hz interlaced (multistandard high-end 100 Hz TV)
` 480 active lines (NTSC like) or 506 active lines in 50 Hz interlaced to 60 Hz progressive mode
` Motion compensated and Edge Dependent De-Interlacing (EDDI)<sup>(1)</sup>
` Motion estimated film mode detection
` Motion compensated movie judder cancellation:
25 Hz 2 : 2 pull-down (PAL) to 60 Hz progressive or 75 Hz interlaced or 100 Hz interlaced or 50 Hz progressive
30 Hz 2 : 2 pull-down (NTSC) to 60 Hz progressive or 90 Hz interlaced or 120 Hz interlaced
24 Hz 3 : 2 pull-down (NTSC) to 60 Hz progressive or 90 Hz interlaced or 120 Hz interlaced
` Variable vertical sharpness enhancement
` High quality vertical zoom
` Motion compensated temporal noise reduction with after-imaging cancellation
` Split screen demonstration mode
` 2 Mbaud serial interface (SNERT)
` Embedded 2 * 2.9-Mbit DRAM
` Full 8-bit accuracy
` Memory buffer for Picture-In-Picture (PIP)
` Lead-free package.

Notes
1. Only valid, if VDDE is present.
2. In accordance with "Transient energy (ESD machine model); SNW-FQ-302B" class C, discharging a 200 pF capacitor via a 0.75 H series inductance.
3. In accordance with "Transient energy (ESD human body model); SNW-FQ-302A" class 2, discharging a 100 pF capacitor via a 1.5 k series resistor.

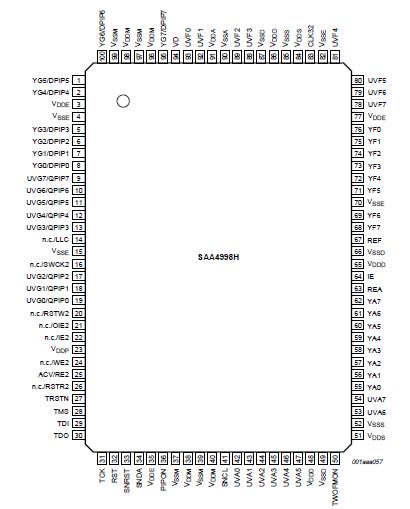

The SAA4998H is a high performance video processor featuring Natural Motion^TM(2), for all global TV standards (PAL, NTSC and SECAM). It is used together with the picture improvement processor SAA4978H and SAA4979H.

The SAA4998H is an advanced version of the SAA4993H. By embedding the field memories it reduces the part count of the realized concept from 4 to 6 parts to only 2 parts and reduces the package size from a QFP160 to a QFP100.

The full FALCONIC SAA4998H mode uses full motion estimation and motion compensation on ^1/4 pixel accuracy to perform

` Frame rate upconversion
` Film mode detection
` Movie judder cancellation
` Dynamic Noise Reduction (DNR)
` Edge Dependent De-Interlacing (EDDI).

The motion compensated de-interlacer is improved with a new patented Edge Dependent De-Interlacing (EDDI) method. This avoids jagged edges of diagonal lines. The better de-interlacer leads to a significant better performance of progressive as well as interlaced output formats.

A 60 Hz progressive output frame rate can be generated for 50 Hz PAL sources to enable the use of 60 Hz LCD or PDP panels in PAL regions.

50 Hz interlaced to 75 Hz interlaced and 60 Hz interlaced to 90 Hz interlaced of SAA4998H can be generated to achieve an increased number of lines and hence a reduction of line visibility for jumbo screens and PTV applications.

The embedded memory SAA4998H can be used to synchronize the main channel and the 2nd channel for PIP and double window applications. SAA4998H avoids to add additional buffer memory devices to the application.

For demonstration purposes a split screen mode to show the Dynamic Noise Reduction (DNR) function, natural motion, and EDDI is available. The estimated motion vectors can be made visible by colour overlay mode.

The SAA4998H supports a Boundary Scan Test (BST) circuit in accordance with "IEEE Std. 1149.1".
