Part Number: SAA5233
Description: The SAA5233 is a dual standard Program Delivery Control (PDC) decoder, allowing the reception and deco...
- Table of contents:
SAA5233
-
Suppliers
DataSheet
General Description
SAA5233 General Description
The SAA5233 is a dual standard Program Delivery Control (PDC) decoder, allowing the reception and decoding of both VPS data (EBU PDC System A) and Teletext packet 8/30/2 data (EBU PDC System B). It is intended for use in European video recorders which are manually programmed, so that they receive broadcast real time switching signals for accurate timing of program recording.
SAA5233 Maximum Ratings
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT |
| VDD | supply voltage | -0.3 | +6.5 | V |
| VImax | maximum input voltage (any input) | -0.3 | VDD + 0.3 | V |
| VOmax | maximum output voltage (any output) | -0.3 | VDD + 0.3 | V |
| IIOmax | maximum DC input or output diode current | - | ±20 | mA |
| IOmax | maximum output current (any output) | - | ±10 | mA |
| Tamb | operating ambient temperature | -20 | +70 | °C |
| Tstg | storage temperature | -55 | +125 | °C |
SAA5233 Features
· Digital data slicer
· Acquisition and decoding of VPS data (EBU PDC System A)
· Acquisition and decoding of Teletext packet 8/30/2 data (EBU PDC System B)
· Separate storage of VPS data and packet 8/30/2 allowing dual standard PDC decoders
· I2C-bus interface with automatic word address increment
· Programmable interrupt for data received
· Programmable error level detection
· Single +5 V power supply.
· Acquisition and decoding of VPS data (EBU PDC System A)
· Acquisition and decoding of Teletext packet 8/30/2 data (EBU PDC System B)
· Separate storage of VPS data and packet 8/30/2 allowing dual standard PDC decoders
· I2C-bus interface with automatic word address increment
· Programmable interrupt for data received
· Programmable error level detection
· Single +5 V power supply.

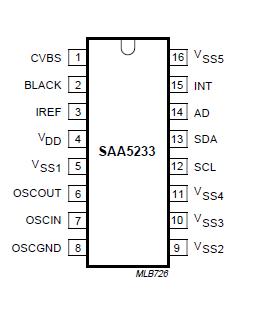

SAA5233 Connection Diagram
