SAA5244A

Features: · Complete teletext decoder including page memory in a single 40-pin DIL package· Single +5 V power supply· Digital data slicer and display clock phase-locked loop reduces peripheral components to a minimum· Both video and scan related synchronization modes are supported· On board single...

product image

SAA5244A Picture
See larger image
SeekIC No. : 004483927 Detail

SAA5244A: Features: · Complete teletext decoder including page memory in a single 40-pin DIL package· Single +5 V power supply· Digital data slicer and display clock phase-locked loop reduces peripheral compo...

SAA5244A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5244A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete teletext decoder including page memory in a single 40-pin DIL package
· Single +5 V power supply
· Digital data slicer and display clock phase-locked loop reduces peripheral components to a minimum
· Both video and scan related synchronization modes are supported
· On board single page memory including extension packets for FASTEXT
· Single page acquisition system
· RGB interface to standard colour decoder ICs, push-pull output drive
· Data capture performance similar to SAA5231 (VIP2)
· Simple software control via I2C-bus
· Option for five national languages
· 32 supplementary characters for on-screen displays
· Optional storage of packet 24 in the display memory
· Page links in packets 27 and 8/30 are Hamming decoded
· Separate text and video signal quality detectors, 625/525 video status and language version all readable via I2C-bus
· Automatic ODD/EVEN output control with manual override
· Control of display PLL free-run and rolling header via I2C-bus
· VCS to SCS mode for stable 525 line status display


Pinout

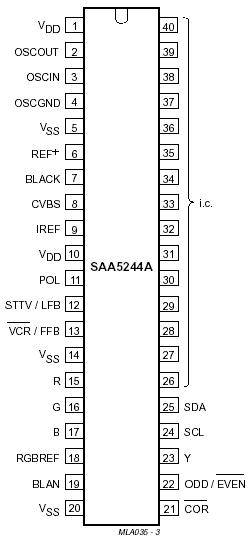

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD digital supply voltage -0.3 +6.5 V
VI input voltage (any input) -0.3 VDD + 0.5 V
VO output voltage (any output) -0.3 VDD + 0.5 V
IO output current (each output) - ±10 mA
IIOK DC input or output diode current - ±20 mA
Tamb operating ambient temperature range -20 70 °C
Tstg operating ambient temperature -55 125 °C
Vesd electrostatic handling
human body model (note 1)		 -2000 2000 V

Note
1. The human body model ESD simulation is equivalent to discharging a 100 pF capacitor through a 1.5 kW resistor; this produces a single discharge transient. Reference Philips Semiconductors test method UZW-B0/FQ-A302 (compatible with MIL-STD method 3015.7).




Description

The Integrated VIP and Teletext (IVT1.1) SAA5244A is a teletext decoder (contained within a single-chip package) for decoding 625-line based World System Teletext transmissions. The teletext decoder hardware is based on a reduced function version of the device SAA5246 (IVT1.0).

The Video Input Processor (VIP) section of the SAA5244A uses mixed analog and digital designs for the data slicer and the display clock phase-locked loop functions. As a result the number of external components SAA5244A is greatly reduced and no critical or adjustable components are required. A single page static RAM  is incorporated in the device thereby giving a genuine single-chip teletext decoder device.
