SAA5254

Features: · Complete teletext decoder including page memory and FASTEXT links in a 40-pin DIP package· Automatic processing of extension packet 26 for widest possible language decoding. All our standard language options can be available, and language option is readable via I2C-bus· 100% hardware c...

product image

SAA5254 Picture
See larger image
SeekIC No. : 004483932 Detail

SAA5254: Features: · Complete teletext decoder including page memory and FASTEXT links in a 40-pin DIP package· Automatic processing of extension packet 26 for widest possible language decoding. All our stan...

SAA5254 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5254
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete teletext decoder including page memory and FASTEXT links in a 40-pin DIP package
· Automatic processing of extension packet 26 for widest possible language decoding. All our standard language options can be available, and language option is readable via I2C-bus
· 100% hardware compatible with the SAA5244A; plug-in replacement and extra market
· 100% hardware compatible with the SAA5244A, except if the special OSD symbols were used with the SAA5244A, except ROM identification number
· The device is pin-aligned with the other members of the new Philips teletext decoder family, i.e. SAA5280 and the SAA5249, making one hardware solution for the full range
· Low software overhead for the control microprocessor
· Single page acquisition system
· RGB interface to standard colour decoder ICs, push-pull output drive
· Separate text and video signal quality detectors.


Pinout

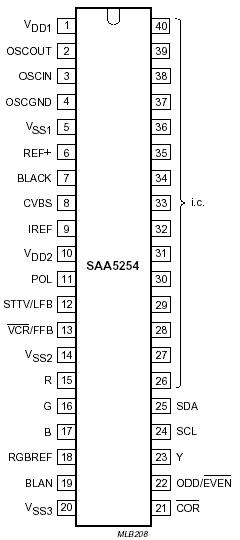

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD digital supply voltage -0.3 +6.5 V
VI input voltage (any input) -0.3 VDD + 0.5 V
VO output voltage (any output) -0.3 VDD + 0.5 V
IO output current (each output) -10 +10 mA
IIOK DC input or output diode current -20 +20 mA
Tstg operating ambient temperature -20 +70 °C



Description

The Integrated VIP and Teletext decoder (IVT1.1X) is designed to decode 625-line based World System Teletext transmissions. This single-chip teletext decoder hardware is based on the SAA5244A with which it is completely compatible.

Like the SAA5244A the device contains all the hardware necessary to decode the teletext, but the SAA5254 also contains extra hardware to process the extension packet 26 characters automatically, extending the markets to which the TV chassis can be shipped and opening the possibility of many more language options.
