SAA5264

Features: The following features apply to both SAA5264 and SAA5265:· Complete 625 line teletext decoder in one chip reduces printed circuit board area and cost· Automatic detection of transmitted fastext links or service information (packet 8/30)· On-Screen Display (OSD) for user interface menus u...

product image

SAA5264 Picture
See larger image
SeekIC No. : 004483936 Detail

SAA5264: Features: The following features apply to both SAA5264 and SAA5265:· Complete 625 line teletext decoder in one chip reduces printed circuit board area and cost· Automatic detection of transmitted fa...

SAA5264 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5264
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The following features apply to both SAA5264 and SAA5265:
· Complete 625 line teletext decoder in one chip reduces printed circuit board area and cost
· Automatic detection of transmitted fastext links or service information (packet 8/30)
· On-Screen Display (OSD) for user interface menus using teletext and dedicated menu icons
· Video Programming System (VPS) decoding
· Wide Screen Signalling (WSS) decoding
· Pan-European, Cyrillic, Greek/Turkish and French/Arabic character sets in each chip
· High-level command interface via I2C-bus gives easy control with a low software overhead
· High-level command interface is backward compatible to Stand-Alone Fastext And Remote Interface (SAFARI)
· 625 and 525 line display
· RGB interface to standard colour decoder ICs, current source
· Versatile 8-bit open-drain Input/Output (I/O) expander, 5 V tolerant
· Single 12 MHz crystal oscillator
· 3.3 V supply voltage.
SAA5264 features
· Automatic detection of transmitted pages to be selected by page up and page down
· 8 Page fastext decoder
· Table Of Pages (TOP) decoder with Basic Top Table (BTT) and Additional Information Tables (AITs)
· 4 Page user-defined list mode.


Pinout

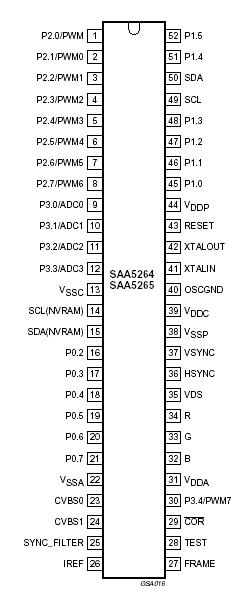

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDX

VI

VO

IO

IIO(d)

Tamb

Tstg		 all supply voltages

input voltage (any input)

output voltage (any output)

output current (each output)

diode DC input or output current

ambient temperature

storage temperature
note 1

note 1









 -0.5

-0.5

-0.5

-

-

-20

-55		 +4.0

VDD + 0.5 or +4.1

VDD + 0.5

10

20

+70

+125		 V

V

V

mA

mA

°C

°C
Note
1. This maximum value refers to 5 V tolerant I/Os and may be 6 V maximum but only when VDD is present.


Description

The SAA5264 is a single-chip ten page 625-line World System Teletext decoder with a high-level command interface, and is SAFARI compatible.

The SAA5265 is a single-chip one page version of the SAA5264.
Both devices are designed to minimize the overall system cost, due to the high-level command interface offering the benefit of a low software overhead in the TV microcontroller.

The SAA5264 has the following functionality:
· 10 page teletext decoder with OSD, Fastext, TOP, default and list acquisition modes
· Automatic channel installation support
· Closed caption acquisition and display
· Violence Chip (VChip) support.

The SAA5265 has the following functionality:
· 1 Page teletext decoder with OSD, fastext and default acquisition modes
· Automatic channel installation support
· Closed caption acquisition and display
· VChip support
· No EEPROM fitted (there is no list mode feature).
