SAA5281

Features: ` Complete Teletext and VPS decoding in a single package` Built-in 8K* 8 memory for up to 8 page storage` Enhanced mode allows 7 Fastext pages and 8 pages of TOP to be captured` Ability to request only subtitle pages` Acquisition and decoding of VPS data` Data valid output available to i...

product image

SAA5281 Picture
See larger image
SeekIC No. : 004483938 Detail

SAA5281: Features: ` Complete Teletext and VPS decoding in a single package` Built-in 8K* 8 memory for up to 8 page storage` Enhanced mode allows 7 Fastext pages and 8 pages of TOP to be captured` Ability to...

SAA5281 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5281
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Complete Teletext and VPS decoding in a single package
` Built-in 8K * 8 memory for up to 8 page storage
` Enhanced mode allows 7 Fastext pages and 8 pages of TOP to be captured
` Ability to request only subtitle pages
` Acquisition and decoding of VPS data
` Data valid output available to indicate reception of error-free VPS or packet 8/30/2 data
` Software and hardware compatible with SAA5246 and SAA5248
` Meshing display within boxes
` Separate data checking algorithms and pointers for each acquisition channel
` 24 : 18 Hamming checker
` Automatic packet 26 extension character processing
` Indication of Line 23 for external use
` 13.5 MHz clock output to drive external microcontroller
` Detection of Spanish transmissions to disable flicker-stopper
` Compatible with Philips' one-chip TV IC (TDA836X) for scan-locking applications.


Pinout

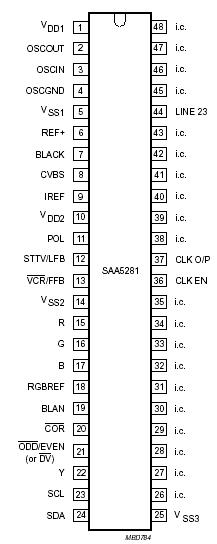

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD digital supply voltage -0.3 +6.5 V
VI input voltage (any input) -0.3 VDD + 0.5 V
VO output voltage (any output) -0.3 VDD + 0.5 V
IO output current (each output) - ±10 mA
IIOK DC input or output diode current - ±20 mA
Tamb operating ambient temperature range -20 70 °C



Description

The IVT1.8* is a single-chip Teletext decoder IC for decoding 625-line based World System Teletext transmissions. The SAA5281 is based on IVT1.0VPS and has reception facilities for the 5 MHz biphase VPS signal. SAA5281 is intended for use in video recorders, in particular to implement the VPT facility (VCR programming via Teletext). With suitable software both VPT standards EBU PDC System A and System B) can be accommodated to allow operation from any European VPT transmission. Automatic processing of packet 26 transmissions is also possible. No external memory of SAA5281 is required as an 8K ×8 DRAM is included on-chip for up to 8 page storage. An enhanced mode allows 7 Fastext pages to be stored, with one chapter used to store extension packets.
