SAA5284

Features: · High performance multi-standard data slicer· Intercastä (Intel Corporation) compatible· Teletext (WST, Chinese teletext) (625 lines)· Teletext (US teletext, NABTS and MOJI) (525 lines)· Wide Screen Signalling (WSS), Video Programming Signal (VPS)· Closed Caption (Europe, US)· Data...

product image

SAA5284 Picture
See larger image
SeekIC No. : 004483939 Detail

SAA5284: Features: · High performance multi-standard data slicer· Intercastä (Intel Corporation) compatible· Teletext (WST, Chinese teletext) (625 lines)· Teletext (US teletext, NABTS and MOJI) (525 lin...

SAA5284 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA5284
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High performance multi-standard data slicer
· Intercastä (Intel Corporation) compatible
· Teletext (WST, Chinese teletext) (625 lines)
· Teletext (US teletext, NABTS and MOJI) (525 lines)
· Wide Screen Signalling (WSS), Video Programming Signal (VPS)
· Closed Caption (Europe, US)
· Data broadcast, PDC (packet 30 and 31)
· User programmable data format (programmable framing code)
· 2 kbytes data cache on-chip to avoid data loss and reduce host CPU overhead
· Filtering of packets 30 and 31 WST/NABTS
· Choice of clock frequencies, direct-in clock or crystal oscillator
· Parallel interface, Motorola, Intel and digital video bus
· I2C-bus control
· Data transport by digital video bus
· Choice of programmable interrupt, DMA or polling driven
· Data type selectable video line by video line, with Vertical Blanking Interval and Full Field mode
· Single IC with few external components and small footprint QFP44 package
· Optimized for EMC.


Pinout

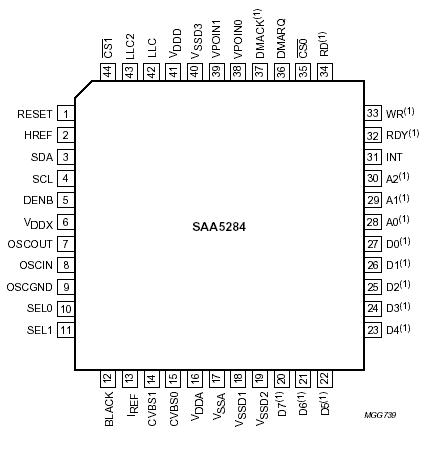

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD

VI(max)

VO(max)

DVDDD-DDA-DDX

IIOK

IO(max)

Tstg

Tamb		 supply voltage (all supplies)

input voltage (any input)

output voltage (any output)

supply voltage difference between VDDD, VDDA and VDDX

DC input or output diode current

output current (any output)

storage temperature

operating ambient temperature		 -0.3

-0.3

-0.3

-

-

-

-55

-20		 +6.5

VDD + 0.5

VDD + 0.5

0.25

20

10

+125

+70		 V

V

V

V

mA

mA

°C

°C



Description

The SAA5284 is a Vertical Blanking Interval (VBI) and Full Field (FF) video data acquisition device tailored for application on PC add-in cards, PC mother-boards, set-top boxes and as a SAA5250 replacement. The SAA5284 in combination with a range of software modules will acquire most existing formats of broadcast VBI and FF data.

These associated software modules are available under licence. Scope is provided for acquiring some as yet unspecified formats. The SAA5284 incorporates all the data slicing, parallel interface, data filtering and control logic. It is controlled either by a parallel interface or I2C-bus. SAA5284 can output ASCII VBI data as pixels on the digital video bus where no parallel port is available. It is available in a QFP44 package.
