Product Details

Description



Features:

· Single-chip microcontroller with integrated OSD
· Versions available with integrated data capture
· OTP memory for both program ROM and character sets
· Single power supply: 3.0 to 3.6 V
· 5 V tolerant digital inputs and I/O
· 29 I/O ports via individual addressable controls
· Programmable I/O for push-pull, open-drain and quasi-bidirectional
· Two port lines with 8 mA sink (at <0.4 V) capability, for direct drive of LED
· Single crystal oscillator for microcontroller, OSD and data capture
· Power reduction modes: Idle, Power-down and Standby
· Byte level I2C-bus interface with dual port I/O
· 32 Dynamically Redefinable Characters for OSDs
· Special graphic characters allowing four colours per character
· Selectable character height 9, 10, 13 and 16 TV lines
· Pin compatibility throughout family
· Operating temperature: -20 to +70 °C.


Pinout

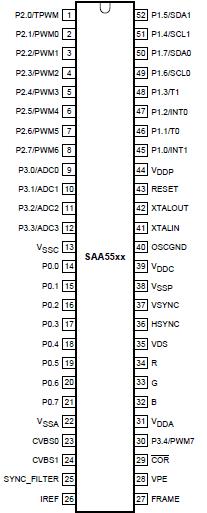

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDX supply voltage (all supplies)   -0.5 +4.0 V
VI input voltage (any input) note 1 -0.5 VDD + 0.5 or 4.1 V
VO output voltage (any output) note 1 -0.5 VDD + 0.5 V
IO output current (each output)   - 10 mA
IIOK DC input or output diode current   - 20 mA
Tamb ambient temperature   -20 +70 °C
Tstg storage temperature   -55 +125 °C

Note
1. This maximum value refers to 5 V tolerant I/Os and may be 6 V maximum but only when VDD is present.


Description

The SAA55xx family of microcontrollers are a derivative of the Philips industry-standard 80C51 microcontroller and are intended for use as the central control mechanism in a television receiver. SAA55xx family provide control functions for the television system, On-Screen Display (OSD) and some versions include an integrated data capture and display function.

The data capture hardware SAA55xx family has the capability of decoding and displaying both 525 and 625-line World System Teletext (WST), Closed Caption (CC) information, Video Programming Information (VPS) and Wide Screen Signalling (WSS) information. The same display hardware SAA55xx family is used both for Teletext, Closed Caption and On-Screen Display, which means that the display features available give greater flexibility to differentiate the TV set.

The SAA55xx family offers a range of functionality from non-text, 16-kbyte program ROM and 256-byte RAM, to a 10 page text version, 128-kbyte program ROM and 2.25-kbyte RAM.
