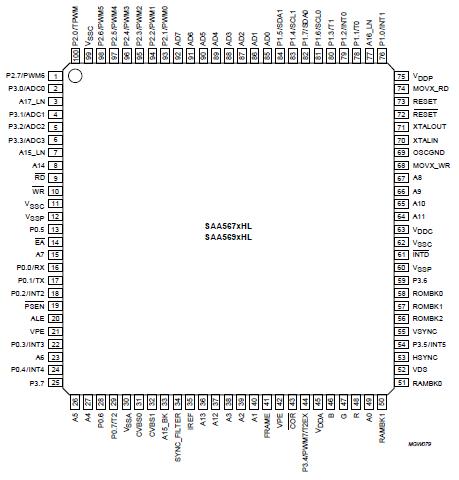

SAA569x

· Single-chip higher frequency microcontroller with integrated On-Screen Display (OSD)
· Support for 50/60 Hz, 100/120 Hz and Progressive Scan display modes.
· Versions available with integrated Data Capture
· Both active HIGH and active LOW reset pins
· OTP memory for both Program ROM and character sets
· Easy connection of external ROM
· In-System Programming (ISP) option for the embedded OTP memories using IEEE1149 (JTAG: Joint Test Action Group) interface
· Single power supply: 3.0 to 3.6 V
· 5 V tolerant digital inputs and I/O
· 32 I/O ports via individual addressable controls
· Larger Character ROM, up to 1020 characters of 12 × 10 pixels
· Smoothing capability on sized characters
· Programmable I/O for push-pull, open-drain and quasi-bidirectional and high-impedance
· Two port lines with 8 mA sink (at <0.4 V) capability, for direct drive of LED
· Single crystal oscillator for microcontroller, OSD and Data Capture
· Power reduction modes: Idle, Standby and Power-down
· Byte level I2C-bus up to 400 kHz dual port I/O
· 64 Dynamically Redefinable Characters for OSDs
· Increased special graphic characters allowing four colours per character
· Selectable character height 9, 10, 13 and 16 TV lines
· Pin compatibility throughout family
· Operating temperature: -20 to +70 °C.

The SAA567x; SAA569x family of microcontrollers are a derivative of the Philips industry-standard 80C51 microcontroller and are intended for use as the central control mechanism in a television receiver. SAA567x; SAA569x provide control functions for the television system, OSD and incorporate an integrated Data Capture and display function for either Teletext or Closed Caption.

The SAA567x; SAA569x offer all the features from the SAA56xx family with the addition of support for a range of Progressive Scan display modes.

The Data Capture hardware can decode and display both 525-line and 625-line World System Teletext (WST), Closed Caption information, Video Programming System (VPS) information and Wide Screen Signalling (WSS) information. The same display hardware SAA567x; SAA569x is used for Teletext, Closed Caption and On-Screen Display, which means that the display features available give greater flexibility to differentiate the TV set. The VBI data services supported by each device of SAA567x; SAA569x is specified in Chapter 4

The SAA567x; SAA569x family offer a range of memory variants with Program ROM sizes of 128 and 192 kbytes, also up to 14 kbytes of RAM.

Another new feature in the SAA567x; SAA569x family of products supports the addition of external ROM to provide up to a total of 256 kbytes of program ROM (e.g. 192 kbytes internal + 64 kbytes external to the SAA567x; SAA569x) with no external logic.
