Part Number: SAA5700
Description: The SAA5700 is a Chinese teletext decoder suitable for TV and multimedia applications. It incorporates...
- Table of contents:
SAA5700
-
Suppliers
DataSheet
General Description
SAA5700 General Description
The SAA5700 is a Chinese teletext decoder suitable for TV and multimedia applications. It incorporates all the data slicing, acquisition and display circuitry on-chip, as well as the logic for memory management. An external DRAM is used to store the currently displayed page and also the precaptured teletext pages.
An external ROM is used to store the ideographic Chinese character set. There is a high level software interface with easy commands for the control of the decoder. Control is achieved via the I2C-bus.
The device is available in a QFP64 package.
SAA5700 Maximum Ratings
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT |
| VDDD1 | digital supply voltage 1 | -0.3 | +6.5 | V |
| VDDD2 | digital supply voltage 2 | -0.3 | +6.5 | V |
| VDDA | analog supply voltage | -0.3 | +6.5 | V |
| VDDX | supply voltage X | -0.3 | +6.5 | V |
| VI(max) | maximum input voltage (any input) | -0.3 | VDD + 0.5 | V |
| VO(max) | maximum output voltage (any output) | -0.3 | VDD + 0.5 | V |
| DVDDX-DDn | supply voltage difference between VDDX, VDDD1, VDDD2 and VDDA |
- | 0.25 | V |
| II(d) | diode input current (DC) | - | 20 | mA |
| IO(d) | diode output current (DC) | - | 20 | mA |
| IO(max) | maximum output current (any output) | - | 10 | mA |
| Tstg | storage temperature range | -55 | +125 | °C |
| Tamb | operating ambient temperature range | -20 | +70 | °C |
SAA5700 Features
· Acquisition and display of the 625-line PAL CCST Chinese standard for teletext, with Chinese and Latin character sets
· Supports multiple DRAM sizes: 256K ×4 bits, 1M ×4 bits, 4M ×4 bits and 2 ×1M ×4 bits with an additional decoder/demultiplexer IC
· Acquires and stores in background up to (typically) 400 pages with 1M×4 bits external DRAM
· CCST Fastext, with capability of displaying Chinese characters on Fastext prompt row
· Meshing for reduced contrast video background in subtitles and boxes
· Full line and screen colour to all edges of screen
· Supports 625-line 50/100 Hz display modes
· Scan-locked and stand-alone sync modes; supports video-locked sync modes with external PLL
· Easy control via high level I2C-bus SAFARI commands
· Sync mode switching and picture centring via I2C-bus SAFARI commands
· Supports external decryption unit for encrypted data.
· Supports multiple DRAM sizes: 256K ×4 bits, 1M ×4 bits, 4M ×4 bits and 2 ×1M ×4 bits with an additional decoder/demultiplexer IC
· Acquires and stores in background up to (typically) 400 pages with 1M×4 bits external DRAM
· CCST Fastext, with capability of displaying Chinese characters on Fastext prompt row
· Meshing for reduced contrast video background in subtitles and boxes
· Full line and screen colour to all edges of screen
· Supports 625-line 50/100 Hz display modes
· Scan-locked and stand-alone sync modes; supports video-locked sync modes with external PLL
· Easy control via high level I2C-bus SAFARI commands
· Sync mode switching and picture centring via I2C-bus SAFARI commands
· Supports external decryption unit for encrypted data.

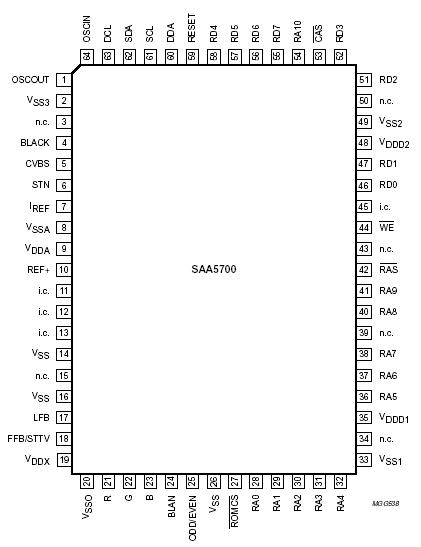

SAA5700 Connection Diagram
