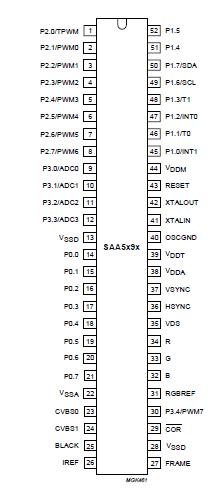

SAA5x9x family

1.1 General

` Single chip microcontroller with integrated teletext decoder
` Single +5 V power supply
` Single crystal oscillator for teletext decoder, display and microcontroller
` Teletext function can be powered-down independently of microcontroller function for reduced power consumption in stand-by
` Pin compatibility throughout family.

1.2 Microcontroller

` 80C51 microcontroller core
` 16/32/64 kbyte mask programmed ROM
` 256/768/1280 bytes of microcontroller RAM
` Eight 6-bit Pulse Width Modulator (PWM) outputs for control of TV analog signals
` One 14-bit PWM for Voltage Synthesis Tuner control
` Four 8-bit Analog-to-Digital converters
` 2 high current open-drain outputs for directly driving LED's etc.
` I2C-bus interface
` External ROM and RAM capability on QFP80 package version.

1.3 Teletext acquisition

` 1 page and 10 page Teletext version
` Acquisition of 525-line and 625-line World System Teletext, with automatic selection
` Acquisition and decoding of VPS data (PDC system A)
` Page clearing in under 64 ms (1 TV line)
` Separate storage of extension packets
(SAA5296/7, SAA5296/7A and SAA5496/7)
` Inventory of transmitted Teletext pages stored in the Transmitted Page Table (TPT) and Subtitle Page Table (SPT) (SAA5296/7, SAA5296/7A and SAA5496/7)
` Automatic detection of FASTEXT transmission
` Real-time packet 26 engine for processing accented (and other) characters
` Comprehensive Teletext language coverage
` Video signal quality detector.

1.4 Teletext Display

` 525-line and 625-line display
` 12 * 10 character matrix
` Double height, width and size On-Screen Display (OSD)
` Definable border colour
` Enhanced display features including meshing and shadowing
` 260 characters in mask programmed ROM
` Automatic FRAME output control with manual override
` RGB push pull output to standard decoder ICs
` Stable display via slave synchronisation to Horizontal Sync and Vertical Sync.

1.5 Additional features of SAA529xA devices

` Wide Screen Signalling (WSS) bit decoding (line 23).

1.6 Additional features of SAA549x devices

` Wide Screen Signalling bit decoding (line 23)
` Quad width OSD capability
` 32 additional OSD characters in mask programmed ROM
` 8 foreground and 8 background colours definable from a palette of 64.

The SAA529x, SAA529xA and SAA549x family of microcontrollers are a derivative of the Philips' industry-standard 80C51 microcontroller and are intended for use as the central control mechanism in a television receiver. SAA529x, SAA529xA and SAA549x provide control functions for the television system and include an integrated teletext function.

The teletext hardware SAA529x, SAA529xA and SAA549x have the capability of decoding and displaying both 525-line and 625-line World System Teletext. The same display hardware is used both for Teletext and On-Screen Display, which means that the display features give greater flexibility to differentiate the TV set.

The SAA529x, SAA529xA and SAA549x family offers both 1 page and 10 page Teletext capability, in a range of ROM sizes. Increasing display capability is offered from the SAA5290 to the SAA5497.
