SAA7109AE

1.1 Video decoder

` Six analog inputs, internal analog source selectors, e.g. 6 * CVBS or (2 * Y/C and 2 * CVBS) or (1 * Y/C and 4 * CVBS)
` Two analog preprocessing channels in differential CMOS style for best S/N performance
` Fully programmable static gain or Automatic Gain Control (AGC) for the selected CVBS or Y/C channel
` Switchable white peak control
` Two built-in analog anti-aliasing filters
` Two 9-bit video CMOS Analog-to-Digital Converters (ADCs), digitized CVBS or Y/C signals are available on the Image Port Data (IPD) port under I2C-bus control
` On-chip clock generator
` Line-locked system clock frequencies
` Digital PLL for horizontal sync processing and clock generation, horizontal and vertical sync detection
` Requires only one crystal (either 24.576 MHz or 32.11 MHz) for all standards
` Automatic detection of 50 and 60 Hz field frequency, and automatic switching between PAL and NTSC standards
` Luminance and chrominance signal processing for PAL BGHI, PAL N, combination PAL N, PAL M, NTSC M, NTSC-Japan, NTSC N, NTSC 4.43 and SECAM
` User programmable luminance peaking or aperture correction
` Cross-colour reduction for NTSC by chrominance comb filtering
` PAL delay line for correcting PAL phase errors
` Brightness Contrast Saturation (BCS) and hue control on-chip
` Two multi functional real-time output pins controlled by the I2C-bus
` Multi-standard VBI data slicer decoding World Standard Teletext (WST), North-American Broadcast Text System (NABTS), Closed Caption (CC), Wide Screen Signalling (WSS), Video Programming System (VPS), Vertical Interval Time Code (VITC) variants (EBU/SMPTE) etc.
` Standard ITU 656 Y-C<sub>B</sub>-C<sub>R</sub> 4 : 2 : 2 format (8-bit) on IPD output bus
` Enhanced ITU 656 output format on IPD output bus containing:
  active video
  raw CVBS data for INTERCAST applications (27 MHz data rate)
  decoded VBI data
` Detection of copy protected input signals according to the Macrovision^TM(1) standard. Can be used to prevent unauthorized recording of pay-TV or video tape signals.

1.2 Video scaler

` Both up and downscaling
` Conversion to square pixel format
` NTSC to 288 lines (video phone)
` Phase accuracy better than ^1/64 pixel or line, horizontally or vertically
` Independent scaling definitions for odd and even fields
` Anti-alias filter for horizontal scaling
` Provides output as:
scaled active video
raw CVBS data for INTERCAST, WAVE-PHORE, POPCON applications or general VBI data decoding (27 MHz or sample rate converted)
` Local video output for Y-C_B-C_R 4 : 2 : 2 format (VMI, VIP, ZV).

1.3 Video encoder

` Digital PAL/NTSC encoder with integrated high quality scaler and anti-flicker filter for TV output from a PC
` Supports Intelâ Digital Video Out (DVO) low voltage interfacing to graphics controller
` 27 MHz crystal-stable subcarrier generation
` Maximum graphics pixel clock 85 MHz at double edged clocking, synthesized on-chip or from external source
` Programmable assignment of clock edge to bytes (in double edged mode)
` Synthesizable pixel clock (PIXCLK) with minimized output jitter, can be used as reference clock for the VGC, as well
` PIXCLK output and bi-phase PIXCLK input (VGC clock loop-through possible)
` Hot-plug detection through dedicated interrupt pin
` Supported VGA resolutions for PAL or NTSC legacy video output up to 1280 * 1024 graphics data at 60 or 50 Hz frame rate
` Supported VGA resolutions for HDTV output up to 1920 * 1080 interlaced graphics data at 60 or 50 Hz frame rate
` Three Digital-to-Analog Converters (DACs) for CVBS (BLUE, C<sub>B</sub>), VBS (GREEN, CVBS) and C (RED, C<sub>R</sub>) at 27 MHz sample rate (signals in parenthesis are optionally selected), all at 10-bit resolution
` Non-interlaced C_B-Y-C_R or RGB input at maximum 4 : 4 : 4 sampling
` Downscaling and upscaling from 50 to 400 %
` Optional interlaced C_B-Y-C_R input of Digital Versatile Disk (DVD) signals
` Optional non-interlaced RGB output to drive second VGA monitor (bypass mode, maximum 85 MHz)
` 3 * 256 bytes RGB Look-Up Table (LUT)
` Support for hardware cursor
` HDTV up to 1920 * 1080 interlaced and 1280 * 720 progressive, including 3-level sync pulses
` Programmable border colour of underscan area
` Programmable 5 line anti-flicker filter
` On-chip 27 MHz crystal oscillator (3rd-harmonic or fundamental 27 MHz crystal)
` Fast I²C-bus control port (400 kHz)
` Encoder can be master or slave
` Adjustable output levels for the DACs
` Programmable horizontal and vertical input synchronization phase
` Programmable horizontal sync output phase
` Internal Colour Bar Generator (CBG)
` Optional support of various Vertical Blanking Interval (VBI) data insertion
` Macrovision Pay-per-View copy protection system rev. 7.01, rev. 6.1 and rev. 1.03 (525p) as option; this applies to SAA7108AE only. The device is protected by USA patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. Use of the Macrovision anti-copy process in the device is licensed for non-commercial home use only. Reverse engineering or disassembly is prohibited. Please contact your nearest Philips Semiconductors sales
office for more information.

1.4 Common features

` 5 V tolerant digital I/O ports
` I2C-bus controlled (full read-back ability by an external controller, bit rate up to 400 kbits/s)
` Versatile power-save modes
` Boundary scan test circuit complies with the "IEEE Std. 1149.b1-1994" (separate ID codes for decoder and encoder)
` Monolithic CMOS 3.3 V device

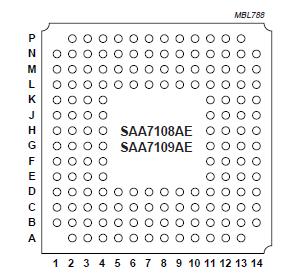

` BGA156 package
` Moisture Sensitive Level (MSL): e3.
