SAA7110

` Six analog inputs (6 * CVBS or 3 * Y/C or combinations)
` Three analog processing channels
` Three built-in analog anti-aliasing filters
` Analog signal adding of two channels
` Two 8-bit video CMOS analog-to-digital converters
` Fully programmable static gain for the main channels or automatic gain control for the selected CVBS/Y channel
` Selectable white peak control signal
` Luminance and chrominance signal processing for PAL B/G, NTSC M and SECAM
` Full range HUE control
` Automatic detection of 50/60 Hz field frequency, and automatic switching between standards PAL and NTSC, SECAM forceable
` Horizontal and vertical sync detection for all standards
` Cross-colour reduction by chrominance comb filtering for NTSC or special cross-colour cancellation for SECAM
` UV signal delay lines for PAL to correct chrominance phase errors
` The YUV-bus supports a data rate of:
   780 * f_h = 12.2727 MHz for 60 Hz (NTSC)
   944 * f_h = 14.75 MHz for 50 Hz (PAL/SECAM)
` Square pixel format with 768/640 active samples per line on the YUV-bus
` CCIR 601 level compatible
` 4 : 2 : 2 and 4 : 1 : 1 YUV output formats in 8-bit resolution
` User programmable luminance peaking for aperture correction
` Compatible with memory-based features (line-locked clock, square pixel)
` Requires only one crystal (26.8 MHz) for all standards
` Real time status information output (RTCO)
` Brightness Contrast Saturation (BCS) control for the YUV-bus
` Negation of picture possible
` One user programmable general purpose switch on an output pin
` Switchable between on-chip Clock Generation Circuit (CGC) and external CGC (SAA7197)
` Power-on control
` I²C-bus controlled.

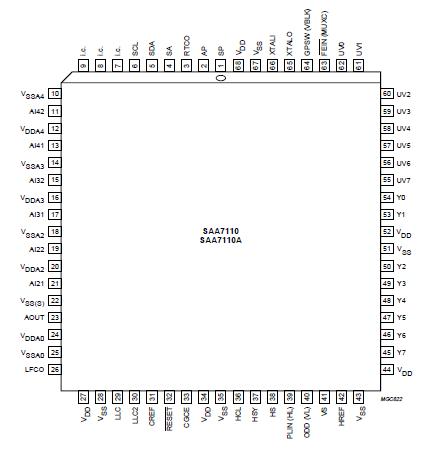

The one chip front-end SAA7110; SAA7110A is a digital multistandard colour decoder (OCF1) on the basis of the DIG-TV2 system with two integrated Analog-to-Digital Converters (ADCs), a Clock Generation Circuit (CGC) and Brightness Contrast Saturation (BCS) control.

The CMOS circuit SAA7110; SAA7110A, analog front-end and digital video decoder, is a highly integrated circuit for desktop video applications. The decoder is based on the principle of line-locked clock decoding. It operates square-pixel frequencies to achieve correct aspect ratio. Monitor controls are provided to ensure best display. The circuit is I2C-bus controlled.
