SAA7124

` Monolithic CMOS 5 V device
` Digital PAL/NTSC encoder
` System pixel frequency 13.5 MHz
` Accepts MPEG decoded data on 8-bit wide input port. Input data format Cb, Y, Cr etc. "(CCIR 656)"
` Four DACs for CVBS (10-bit resolution), RGB (9-bit resolution) operating at 27 MHz; RGB sync on CVBS
` Optionally 2 times CVBS and Y, C (all 10-bit resolution) available simultaneously
` Closed captioning encoding
` On-chip YUV to RGB dematrix optionally to be by-passed for Cr, Y, Cb output on RGB DACs
` Fast I<sup>2</sup>C-bus control port (400 kHz)
` Encoder can be master or slave
` Programmable horizontal and vertical input synchronization phase, via input pins or auxiliary codes at MP data port
` Programmable horizontal sync output phase
` Internal 100/75 Colour Bar Generator (CBG)
` Macrovision Pay-per-View copy protection system as option, also partly used for RGB output.

This applies to SAA7124 only. The device is protected by USA patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. Use of the Macrovision anti-copy process in the device is licensed for non-commercial home use only. Reverse engineering or disassembly is prohibited. Please contact your nearest Philips Semiconductor
sales office for more information

` Controlled rise and fall times of output syncs and blanking
` Down-mode of DACs

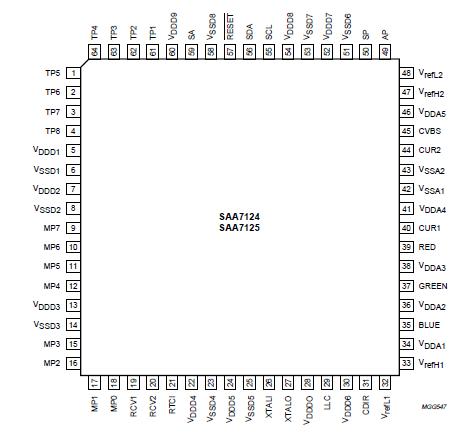

` LQFP64 (V1 devices only), QFP80 or PLCC84 package.

The SAA7124; SAA7125 encodes digital YUV video data to an NTSC or PAL CVBS plus RGB or alternatively to S-Video and CVBS output.

Optionally, the YUV to RGB dematrix of SAA7124; SAA7125 can be by-passed providing the digital-to-analog converted Cb, Y, Cr signals instead of RGB.

The SAA7124; SAA7125 accept CCIR compatible YUV data with 720 active pixels per line in 4 : 2 : 2 multiplexed formats, for example MPEG decoded data.

SAA7124; SAA7125 include a sync/clock generator and on-chip Digital-to-Analog Converters (DACs).
