SAA7167

Features: ` On-chip mixing of digital video data and analog RGB signals` Supports video input format of YUV 4 : 2 : 2, 4 : 1 : 1, 2 : 1 : 1 and RGB 5 : 6 : 5` Video input rate up to 50 MHz` Allows for both binary and two's complement video input data` Triple 8-bit DACs for video output` Built-in v...

product image

SAA7167 Picture
See larger image
SeekIC No. : 004484014 Detail

SAA7167: Features: ` On-chip mixing of digital video data and analog RGB signals` Supports video input format of YUV 4 : 2 : 2, 4 : 1 : 1, 2 : 1 : 1 and RGB 5 : 6 : 5` Video input rate up to 50 MHz` Allows f...

SAA7167 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7167
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` On-chip mixing of digital video data and analog RGB signals
` Supports video input format of YUV 4 : 2 : 2, 4 : 1 : 1, 2 : 1 : 1 and RGB 5 : 6 : 5
` Video input rate up to 50 MHz
` Allows for both binary and two's complement video input data
` Triple 8-bit DACs for video output
` Built-in voltage output amplifier
` Provide keying control with external key and internal 8-bit, 2 * 8-bit and 3 * 8-bit pixel colour key
` Programmable via the I2C-bus
` 5 V CMOS device; LQFP48 package.


Pinout

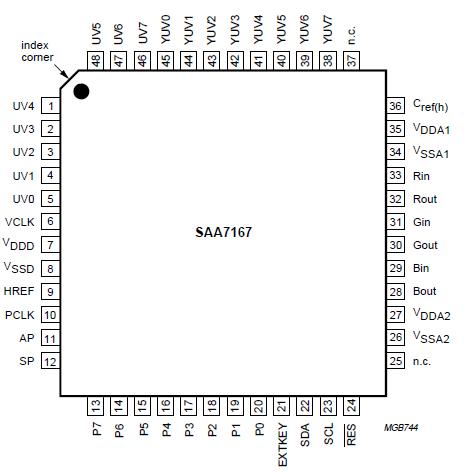

Connection Diagram


Description

The SAA7167 is a mixed-mode designed IC containing a video data path, keying control block, analog mixer, and a voltage output amplifier, capable of converting digital video data to analog RGB video, and then mixing video and external analog RGB inputs.

The video data path of SAA7167 contains a data re-formatter, YUV-to-RGB colour space matrix as well as triple DACs for video data processing. An analog mixer performs multiplexing between DAC outputs of the video path and external analog RGB inputs.

The final analog outputs of SAA7167 are buffered with built-in voltage output amplifiers to provide the direct driving capability for a 150 load. Figure 1 shows the overall block diagram.

The operation of SAA7167 is controlled via the I2C-bus.
