SAA7185

Features: · CMOS 5 V device· Digital PAL/NTSC encoder· System pixel frequency 13.5 MHz· Accepts MPEG decoded data· 8-bit wide MPEG port· Input data format Cb, Y, Cr etc. (CCIR 656)· 16-bit wide YUV input port· I2C-bus control or alternatively MPU parallel control port· Encoder can be master or sla...

product image

SAA7185 Picture
See larger image
SeekIC No. : 004484020 Detail

SAA7185: Features: · CMOS 5 V device· Digital PAL/NTSC encoder· System pixel frequency 13.5 MHz· Accepts MPEG decoded data· 8-bit wide MPEG port· Input data format Cb, Y, Cr etc. (CCIR 656)· 16-bit wide YUV ...

SAA7185 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7185
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS 5 V device
· Digital PAL/NTSC encoder
· System pixel frequency 13.5 MHz
· Accepts MPEG decoded data
· 8-bit wide MPEG port
· Input data format Cb, Y, Cr etc. (CCIR 656)
· 16-bit wide YUV input port
· I2C-bus control or alternatively MPU parallel control port
· Encoder can be master or slave
· Programmable horizontal and vertical input synchronization phase
· Programmable horizontal sync output phase
· OSD overlay with Look-Up Tables (LUTs) 8 × 3 bytes
· Colour bar generator
· Line 21 Closed Caption encoder
· Cross-colour reduction
· DACs operating at 27 MHz with 10-bit resolution
· Controlled rise/fall times of output syncs and blanking
· Down-mode of DACs
· CVBS and S-Video output simultaneously
· PLCC68 package.


Pinout

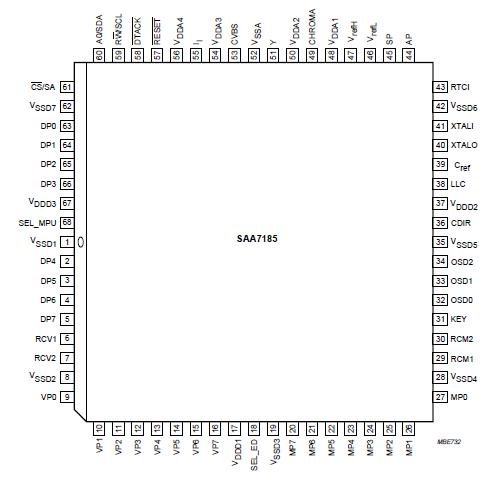

Connection Diagram


Description

The SAA7185 encodes digital YUV video data to an NTSC, PAL CVBS or S-Video signal.

The SAA7185 accepts CCIR compatible YUV data with 720 active pixels per line in 4 : 2 : 2 multiplexed formats, for example MPEG decoded data. It includes a sync/clock generator and on-chip Digital-to-Analog Converters (DACs).

The SAA7185 is compatible to the DIG-TV2 chip family.
