SAA7187

Features: · CMOS 5 V device· Digital PAL/NTSC encoder· System pixel frequency selectable for 12.27 MHz (60 Hz fields) or 14.75 MHz (50 Hz fields)· 24-bit wide YUV input port or· 16-bit wide YUV input port or· Input data format Cb, Y, Cr, etc. (CCIR 656)· I2C-bus control port· MPU parallel control ...

product image

SAA7187 Picture
See larger image
SeekIC No. : 004484023 Detail

SAA7187: Features: · CMOS 5 V device· Digital PAL/NTSC encoder· System pixel frequency selectable for 12.27 MHz (60 Hz fields) or 14.75 MHz (50 Hz fields)· 24-bit wide YUV input port or· 16-bit wide YUV inpu...

SAA7187 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7187
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS 5 V device
· Digital PAL/NTSC encoder
· System pixel frequency selectable for 12.27 MHz (60 Hz fields) or 14.75 MHz (50 Hz fields)
· 24-bit wide YUV input port or
· 16-bit wide YUV input port or
· Input data format Cb, Y, Cr, etc. (CCIR 656)
· I2C-bus control port
· MPU parallel control port
· Encoder can be master or slave
· Programmable horizontal and vertical input synchronization phase
· Programmable horizontal sync output phase
· OSD overlay with Look-Up Tables (LUTs) 8 × 3 bytes
· Line 21 Closed Caption encoder
· Cross-colour reduction
· DACs operating at twice oversampling with 10-bit resolution
· Controlled rise/fall times of output syncs and blanking
· Down-mode of DACs
· CVBS and S-Video output simultaneously
· PLCC68 package.


Pinout

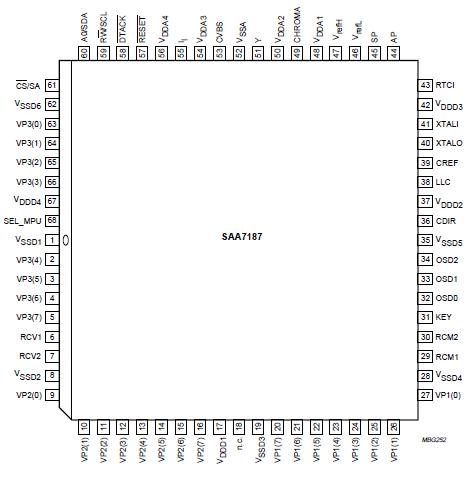

Connection Diagram


Description

The SAA7187 encodes digital YUV video data to an NTSC, PAL CVBS or S-Video signal.

The SAA7187 accepts differently formatted YUV data with 640 or 768 active pixels per line. It includes a sync/clock generator and on-chip Digital-to-Analog Converters (DACs).

The SAA7187 is compatible to the DIG-TV2 chip family (Square Pixel).
