SAA7191B

Features: · Separate 8-bit luminance (Y or CVBS) and 8-bit chrominance inputs (CVBS or C) from CVBS, Y/C, S-Video (S-VHS or Hi8) sources· Luminance and chrominance signal processing for standards PAL-B/G, NTSC-M, SECAM· Horizontal and vertical sync detection for all standards· Real-time control ou...

product image

SAA7191B Picture
See larger image
SeekIC No. : 004484025 Detail

SAA7191B: Features: · Separate 8-bit luminance (Y or CVBS) and 8-bit chrominance inputs (CVBS or C) from CVBS, Y/C, S-Video (S-VHS or Hi8) sources· Luminance and chrominance signal processing for standards PA...

SAA7191B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7191B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Separate 8-bit luminance (Y or CVBS) and 8-bit chrominance inputs (CVBS or C) from CVBS, Y/C, S-Video (S-VHS or Hi8) sources
· Luminance and chrominance signal processing for standards PAL-B/G, NTSC-M, SECAM
· Horizontal and vertical sync detection for all standards
· Real-time control output RTCO to be used for frequency-locked digital video encoder (SAA7199B). RTCO contains serialized information about actual clock frequency, subcarrier frequency and PAL/SECAM sequence.
· Controls via the I2C-bus
· User programmable aperture correction (horizontal peaking)
· Compatible with memory-based features (line-locked clock)
· Cross-colour reduction by chrominance comb-filtering (NTSC) or by special cross colour cancellation (SECAM)
· 8-bit quantization of input signals
· 768/640 active samples per line equals 50/60 Hz (SQP)
· The YUV bus supports data rates of 780×fH equal to 12.2727 MHz for 60 Hz (NTSC-M) and 944×fH equal to 14.75 MHz for 50 Hz (PAL-B/G, SECAM) in 4 : 1 : 1 or 4 : 2 : 2 formats (via the I2C-bus)
· One crystal oscillator of 26.8 MHz


Pinout

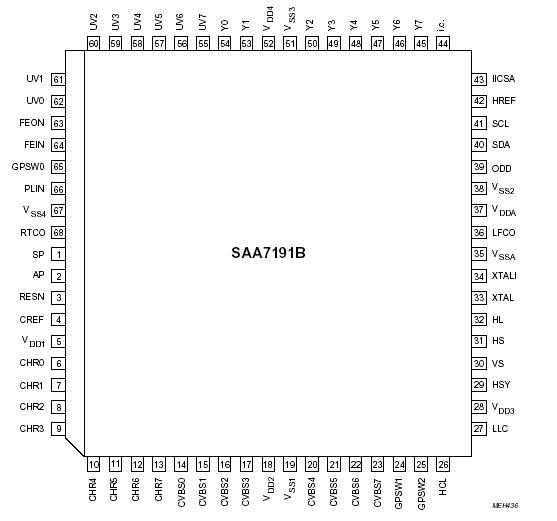

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage (pins 5, 18, 28, 37, 52) -0.5 7.0 V
Vdiff GND difference voltage VSS A - VSS (1 to 4) - ±100 mV
VI voltage on all inputs -0.5 VDD+0.5 V
VO voltage on all outputs (IO max = 20 mA) -0.5 VDD+0.5 V
Ptot total power dissipation - 2.5 W
Tstg storage temperature range -65 150 °C
Tamb operating ambient temperature range 0 70 °C
VESD electrostatic handling(1) for all pins - ±2000 V
Note
1. Equivalent to discharging a 100 pF capacitor through an 1.5 k series resistor.


Description

The SAA7191B is a digital multistandard colour decoder suitable for 8-bit CVBS input signals or for 8-bit luminance and 8-bit chrominance input signals (Y/C).

The SAA7191B is down-compatible with SAA7191. It has additional outputs RTCO, GPSW0 and ODD. These new outputs are in high-impedance state when NFEN-bit = 0.
