SAA7199B

Features: · Monolithic integrated CMOS video encoder circuit· Standard MPU (12 lines) and I2C-bus interfaces for controls· Three 8-bit signal inputs PD7 to PD0 for RGB respectively YUV or indexed colour signals (Tables 19 to 26)· Square pixel and CCIR input data rates· Band limited composite sync ...

product image

SAA7199B Picture
See larger image
SeekIC No. : 004484028 Detail

SAA7199B: Features: · Monolithic integrated CMOS video encoder circuit· Standard MPU (12 lines) and I2C-bus interfaces for controls· Three 8-bit signal inputs PD7 to PD0 for RGB respectively YUV or indexed co...

SAA7199B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7199B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Monolithic integrated CMOS video encoder circuit
· Standard MPU (12 lines) and I2C-bus interfaces for controls
· Three 8-bit signal inputs PD7 to PD0 for RGB respectively YUV or indexed colour signals (Tables 19 to 26)
· Square pixel and CCIR input data rates
· Band limited composite sync pulses
· Three 256 ´ 8 colour look-up tables (CLUTs) for example for gamma correction
· External subcarrier from a digital decoder (SAA7151B or SAA7191B)
· Multi-purpose key for real time format switching
· Autonomous internal blanking
· Optional GENLOCK operation with adjustable horizontal sync timing and adjustable subcarrier phase
· Stable GENLOCK operation in VCR standard playback mode
· Optional still video capture extension
· Three suitable video 9-bit digital-to-analog converters
· Composite analog output signals CVBS, Y and C for PAL/NTSC
· Line 21 data insertion possible.


Pinout

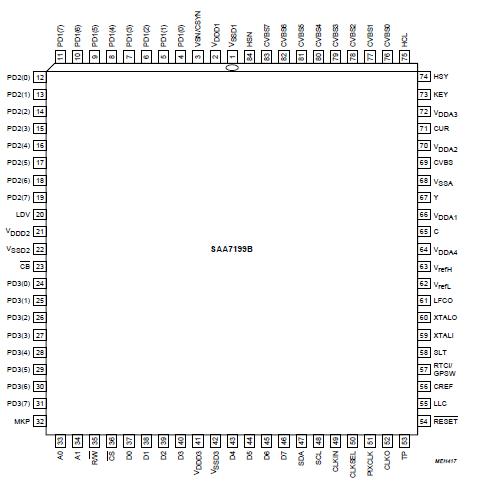

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA1 analog supply voltage 1 (pin 66)   -0.3 +7 V
VDDA2 analog supply voltage 2 (pin 70)   -0.3 +7 V
VDDA3 analog supply voltage 3 (pin 72)   -0.3 +7 V
VDDA4 analog supply voltage 4 (pin 64)   -0.3 +7 V
VDDD1 digital supply voltage 1 (pin 2)   -0.3 +7 V
VDDD2 digital supply voltage 2 (pin 21)   -0.3 +7 V
VDDD3 digital supply voltage 3 (pin 41)   -0.3 +7 V
Vdiff(GND) voltage difference between analog and digital ground pins
(VSSA - VSSDn)		   - ±100 mV
Vn voltage on all pins except grounds   0 VP V
Ptot total power dissipation   - 1.1 W
Tstg storage temperature   -65 +150 °C
Tamb operating ambient temperature   0 70 °C
Vesd electrostatic handling for all pins note 1 -2000 +2000 V

Note
1. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.


Description

The SAA7199B encodes digital baseband colour/video data into analog Y, C and CVBS signals (S-video included). Pixel clock and data are line-locked to the horizontal scanning frequency of the video signal. The circuit of SAA7199B can be used in a square pixel or in a consumer TV application. Flexibility is provided by programming facilities via MPU-bus (parallel) or I2C-bus (serial).
