SAA7207H

Features: · (204, 188 and 17) Digital Video Broadcasting (DVB) compliant Reed Solomon (RS) codes· Automatic synchronization of bytes, blocks and frame· Convolutional de-interleaving (I = 12)· Energy dispersal de-randomizing· Contained in a 44-pin quad flat package· I2C-bus interface· 6 quasi-bidir...

product image

SAA7207H Picture
See larger image
SeekIC No. : 004484032 Detail

SAA7207H: Features: · (204, 188 and 17) Digital Video Broadcasting (DVB) compliant Reed Solomon (RS) codes· Automatic synchronization of bytes, blocks and frame· Convolutional de-interleaving (I = 12)· Energy...

SAA7207H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7207H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· (204, 188 and 17) Digital Video Broadcasting (DVB) compliant Reed Solomon (RS) codes
· Automatic synchronization of bytes, blocks and frame
· Convolutional de-interleaving (I = 12)
· Energy dispersal de-randomizing
· Contained in a 44-pin quad flat package
· I2C-bus interface
· 6 quasi-bidirectional ports
· Boundary scan facility.


Application

· Forward Error Correction (FEC) for digital TV distribution according to the DVB standard.


Pinout

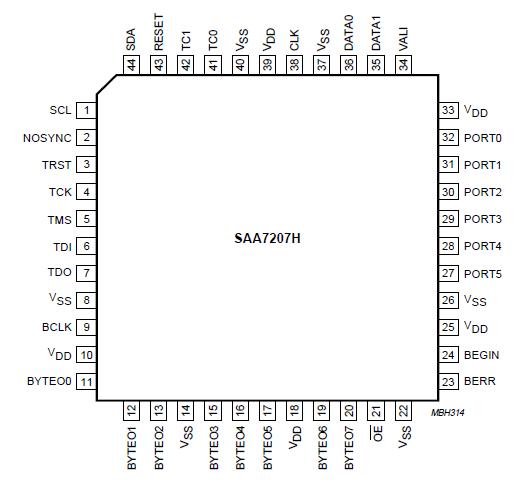

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage -0.3 +6.0 V
Vi input voltage 0 VDD V
Ii input current -10 +10 mA
Io output current -20 +20 mA
Tstg storage temperature -55 +150 °C
Tamb operating ambient temperature 0 70 °C
