SAA7324

Features: ` Integrated bitstream DAC with differential outputs, operating at 96fs with 3rd-order noise shaper; typical performance of -90 dB signal-to-noise ratio` Separate serial input and output interfaces allow data 'loopback' mode for use of onboard DAC with external Electronic Shock Absorptio...

product image

SAA7324 Picture
See larger image
SeekIC No. : 004484048 Detail

SAA7324: Features: ` Integrated bitstream DAC with differential outputs, operating at 96fs with 3rd-order noise shaper; typical performance of -90 dB signal-to-noise ratio` Separate serial input and output i...

SAA7324 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7324
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Integrated bitstream DAC with differential outputs, operating at 96fs with 3rd-order noise shaper; typical performance of -90 dB signal-to-noise ratio
` Separate serial input and output interfaces allow data 'loopback' mode for use of onboard DAC with external Electronic Shock Absorption (ESA) systems
` Up to 4 times speed mode
` Low voltage operation at up to 2 times speed
` Lock-to-disc mode
` Full error correction strategy, t = 2 and e = 4
` Full CD graphics interface
` All standard decoder functions implemented digitally on chip
` FIFO overflow concealment for rotational shock resistance
` Digital audio interface (EBU), audio and data
` Two and four times oversampling integrated digital filter, including fs mode
` Audio data peak level detection
` Kill interface for external DAC deactivation during digital silence
` All SAA737x (CD7) digital servo and high-level functions
` Low focus noise
` Same playability performance as SAA737x (CD7)
` Automatic closed-loop gain control available for focus and radial loops
` Pulsed sledge support
` Electronic damping of fast radial actuator during long jump
` Microcontroller loading LOW
` High-level servo control option
` High-level mechanism monitor
` Communication may be via TDA1301/SAA7345 compatible bus or I2C-bus
` On-chip clock multiplier allows the use of 8.4672, 16.9344 or 33.8688 MHz crystals or ceramic resonators.

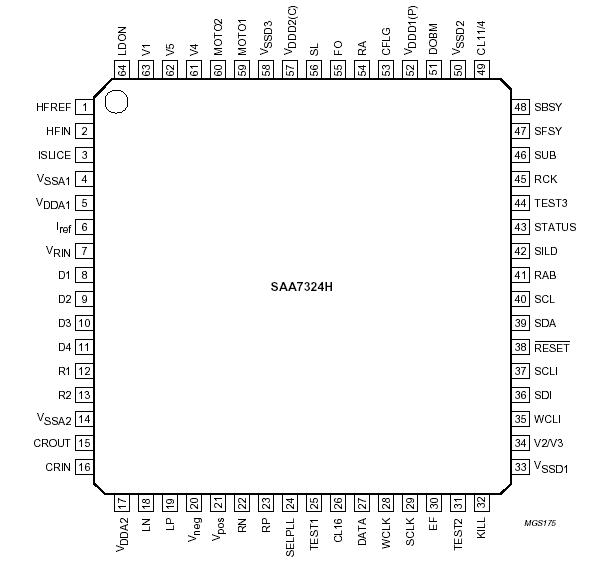

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage note 1 -0.5 +3.6 V
VI(max) maximum input voltage
any input
pins RESET, SDA, SCL, RAB and SILD		   -0.5
-0.5		 VDD + 0.5
+5.5		 V
V
VO output voltage (any output)   -0.5 +3.6 V
VDD(diff) difference between VDDA, VDDD and Vpos   - ±0.25 V
IO output current (continuous)   - ±20 mA
II(d) DC input diode current (continuous)   - ±20 mA
Ves electrostatic handling note 2 -2000 +2000 V
note 3 -200 +200 V
Tamb ambient temperature   -10 +70 °C
Tstg storage temperature   -55 +125 °C
Notes
1. All VDD (and Vpos) connections and VSS (and Vneg) connections must be made externally to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 kW series resistor with a rise time of 15 ns.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 mH series inductor.


Description

The SAA7324 (CD10 II) is a single chip combining the functions of a CD decoder, digital servo and bitstream DAC. The decoder/servo part is based on the SAA737x (CD7) and is software compatible with this design. Extra functions of SAA7324 are controlled by use of 'shadow' registers (see Section 7.15.3).

Supply of this Compact Disc IC SAA7324 does not convey an implied license under any patent right to use this IC in any Compact Disc application.
