Features: · Compatibility with CD-I, CD-ROM, MPEG-video DVD-ROM and DVD-video applications
· Designed for very high playback speeds
· Typical CD-ROM operation up to n = 12, DVD-ROM to n = 1.9, maximum rates (tbf)
· Matched filtering, quad-pass error correction (C1-C2-C1-C2), overspeed audio playback function included (up to 3 kbytes buffer)
· Lock-to-disc playback, Constant Angular Velocity (CAV), pseudo-Constant Linear Velocity (CLV) and CLV motor control loops
· Interface to 32 kbytes SRAM for DVD error correction and de-interleave
· Sub-code/ header processing for DVD and CD formats
· Programmable HF equalizer
· In DVD mode it is still compatible with Philips block decoders
· Sub-CPU interface can be parallel or fast I2C-bus
· On-chip clock multiplier.

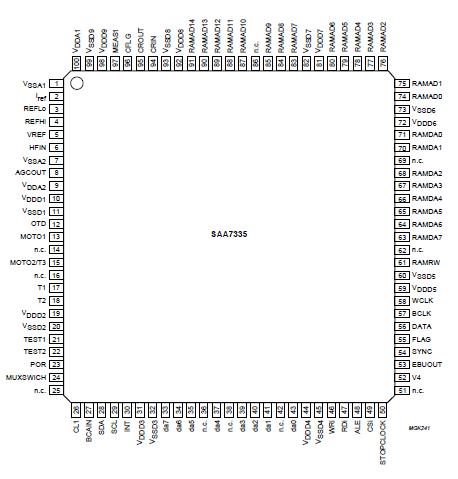

Pinout
Specifications
| SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
| VDDD |
digital supply voltage |
|
-0.3 |
+6.5 |
V |
| VDDA |
analog supply voltage |
|
-0.3 |
+6.5 |
V |
| Vi(max) |
maximum input voltage (any input) |
note 1 |
-0.3 |
VDD + 0.5 |
V |
| Vo(max) |
maximum output voltage (any output) |
note 1 |
- |
VDD + 0.5 |
V |
| Io(max) |
maximum output current (each output) |
|
- |
±10 |
mA |
| Tamb |
operating ambient temperature |
|
-20 |
+70 |
°C |
| Tstg |
storage temperature |
|
-55 |
+125 |
°C |
| VESD |
electrostatic handling
human body model
machine model |
note 2
note 3 |
-2000
-200 |
+2000
+200 |
V
V |
Notes
1. This maximum value has an absolute maximum of 6.5 V independent of the supply voltage.
2. The human body model ESD simulation is equivalent to discharging a 100 pF capacitor via a 1.5 k resistor, which produces a single discharge transient. Reference "Philips Semiconductors Test Method UZW-BO/FQ-A302 (similar to MIL-STD 883C method 3015.7)".
3. The machine model ESD simulation is equivalent to discharging a 200 pF capacitor via a resistor and series inductor with effective dynamic values of 25 and 2.5 H, which produces a damped oscillating discharge. Reference "Philips Semiconductors Test Method UZW-BO/FQ-B302 (similar to EIAJ IC-121 Test Method 20 condition C)".
DescriptionSAA7335 is a high-end combined Compact Disc (CD) and Digital Versatile Disc (DVD) compatible decoding device. The device operates with an external 32 kbytes S-RAM memory for de-interleaving operations. The SAA7335 provides quad-pass error correction for CD-ROM applications (C1-C2-C1-C2) and operates in lock-to-disk, CAV, pseudo CLV and CLV modes.
In DVD modes double-pass C1-C2 error correction of SAA7335 is used which is capable of correcting up to 5 C1 frame errors and 16 C2 frame errors.
The SAA7335 contains all the functions required to decode an EFM or EFM+ HF signal directly from the laser pre-amplifier, including analog front-end, PLL data recovery, demodulation and error correction. The spindle motor interface provides both motor control signals from the demodulator and, in addition, SAA7335 contains a tachometer loop that accepts tachometer pulses from the motor unit.
The SAA7335 has two independent microcontroller interfaces. The first is a serial I2C-bus and the second is a standard 8-bit multiplexed parallel interface. Both of these interfaces provide access to a total of 32 ´ 8-bit registers
for control and status.
This data sheet of SAA7335 contains an descriptive overview of the device together with electrical and timing characteristics. For a detailed description of the device refer to the user guide "SAU/UM96018".
Supply of this CD/DVD IC SAA7335 does not convey an implied license under any patent right to use this IC in any CD or DVD application.
SAA7335 Data Sheet
