SAA7346

Features: ` Absorbs shocks from x, y and z directions` Absorbs rotational shocks` Absorbs multiple shocks per second` Interfaces directly to compact disc decoders SAA7345, SAA7347 and SAA7370` Multi-speed I2S-bus input with single-speed I2S-bus output` Controls 1 or 4 MBit of external Dynamic Rand...

product image

SAA7346 Picture
See larger image
SeekIC No. : 004484056 Detail

SAA7346: Features: ` Absorbs shocks from x, y and z directions` Absorbs rotational shocks` Absorbs multiple shocks per second` Interfaces directly to compact disc decoders SAA7345, SAA7347 and SAA7370` Multi...

SAA7346 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7346
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Absorbs shocks from x, y and z directions
` Absorbs rotational shocks
` Absorbs multiple shocks per second
` Interfaces directly to compact disc decoders SAA7345, SAA7347 and SAA7370
` Multi-speed I2S-bus input with single-speed I2S-bus output
` Controls 1 or 4 MBit of external Dynamic Random Access Memory (DRAM)
` Easy serial interface for communication with common microcontrollers
` Software selectable shock detectors
` By-pass/power-down mode
` Kill interface for DAC deactivation
` Can be used for:
   'sampling' part of a disc
   to reduce access pauses between jumps
   to deliver a programmable delay
   to generate a fixed audio rate from Constant Angular Velocity (CAV) discs.


Pinout

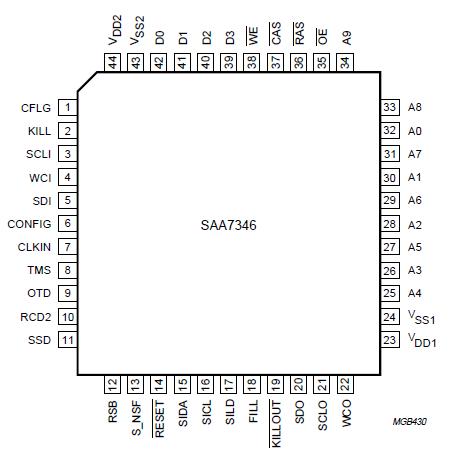

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage 0 6.5 V
Pmax maximum power dissipation - 500 mW
Tstg storage temperature -55 +125 °C
Tamb operating ambient temperature -40 +85 °C



Description

The SAA7346 can be used to make a CD player insensitive to shocks. To do this, it operates closely with a standard 1 Mbit or 4 Mbit DRAM. Audio data is stored inside the DRAM and during shocks the data of the DRAM can be played. The SAA7346 functions as a customized DRAM controller with serial I/O and on-board shock detectors.
