Product Details

Description



Features:

· Stereo input
· Single-ended input
· Uncommitted input buffer for filtering and pre-scaling
· Fully differential analog-to-digital converter (ADC) using 3rd order Sigma-Delta modulation
· 128 times oversampling
· Four stage digital decimation filter
· Switchable high-pass filter to remove DC offsets
· 16-bit or 18-bit selectable output in a multiple of formats
· Sampling rates between 18 and 53 kHz supported
· Master or slave operation
· Choice of 2 crystal frequencies
· Single power supply operation (+5 V).


Pinout

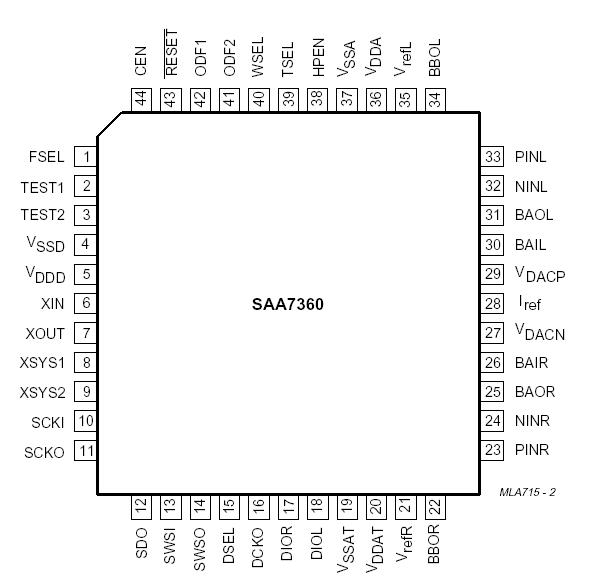

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA analog supply voltage note 1 -0.5 +6.5 V
VI DC input voltage   -0.5 +6.5 V
IIK DC input diode current   - ±20 mA
VO DC output voltage   -0.5 VDD + 0.5 V
IO DC output source or sink current   - ±20 mA
IDD or ISS total DC VDD or VSS current   - ±0.5 A
Tamb operating ambient temperature   -40 +85 °C
Tstg storage temperature   -65 +150 °C
Ves electrostatic handling note 2 -2000 +2000 V
note 3 -200 +200 V
Notes
1. All VDD and VSS pins must be externally connected to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 kW series resistor with a rise time of 15 ns.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 mH series inductor.


Description

The SAA7360 is a CMOS ADC using Philips bitstream conversion technique. The SAA7360 is designed for digital audio playback systems, such as digital amplifiers, CD-recordable and Digital Compact Cassette (DCC). The device is a complementary device to the SAA7350 bitstream conversion digital-to-analog converter (DAC).
