SAA7367

Features: · Total Harmonic Distortion plus Noise (THD + N) = -88 dB (0.004%); DR = 93 dB; S/N = 97 dB· Simple interfacing to analog inputs· Small, non-critical PCB layout· Low pin-out SO24 package (pin-compatible to SAA7366)· 4 flexible serial interface modes· 4.5 to 5.5 V operation· Standby mode·...

product image

SAA7367 Picture
See larger image
SeekIC No. : 004484062 Detail

SAA7367: Features: · Total Harmonic Distortion plus Noise (THD + N) = -88 dB (0.004%); DR = 93 dB; S/N = 97 dB· Simple interfacing to analog inputs· Small, non-critical PCB layout· Low pin-out SO24 package (...

SAA7367 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7367
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Total Harmonic Distortion plus Noise (THD + N) = -88 dB (0.004%); DR = 93 dB; S/N = 97 dB
· Simple interfacing to analog inputs
· Small, non-critical PCB layout
· Low pin-out SO24 package (pin-compatible to SAA7366)
· 4 flexible serial interface modes
· 4.5 to 5.5 V operation
· Standby mode
· Detection of digital signal ³-1 dB amplitude
· Up to 18 significant bits serial output
· Selectable high-pass filter.


Application

· Compact Disc-Recordable (CD-R)
· Audio digital signal processing systems for hi-fi and musical instrument applications
· Digital Audio Tape (DAT).

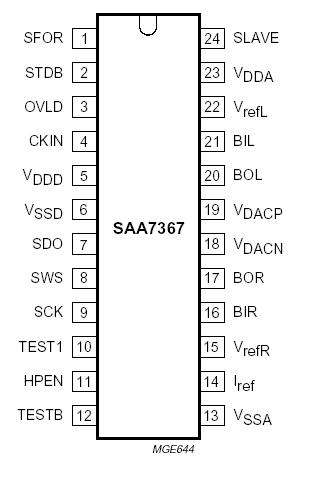

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDDA

VI

IIK

VO

IO

IDD(tot)

ISStot

Tamb

Tstg		 analog supply voltage (note 1)

DC input voltage

DC input clamp diode current

DC output voltage

DC output source or sink current

total DC supply current

total DC supply current

operating ambient temperature

storage temperature		 -0.5

-0.5

-

-0.5

-

-

-

-40

-65		 +6.5

+6.5

±20

VDD + 0.5

±20

±0.5

±0.5

+85

+150		 V

V

mA

V

mA

A

A

°C

°C
Note
1. VSSD and VSSA must be connected to a common potential.


Description

The SAA7367 is a CMOS low-cost stereo Analog-to-Digital Converter (ADC) using the Philips bitstream conversion technique.
