SAA7370A

Features: · CD-ROM mode· Up to 8 times-speed mode· Lock-to-disc mode· Full error correction strategy, t = 2 and e = 4· Full CD graphics interface· All standard decoder functions implemented digitally on chip· FIFO overflow concealment for rotational shock resistance· Digital audio interface (EBU),...

product image

SAA7370A Picture
See larger image
SeekIC No. : 004484064 Detail

SAA7370A: Features: · CD-ROM mode· Up to 8 times-speed mode· Lock-to-disc mode· Full error correction strategy, t = 2 and e = 4· Full CD graphics interface· All standard decoder functions implemented digitall...

SAA7370A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7370A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CD-ROM mode
· Up to 8 times-speed mode
· Lock-to-disc mode
· Full error correction strategy, t = 2 and e = 4
· Full CD graphics interface
· All standard decoder functions implemented digitally on chip
· FIFO overflow concealment for rotational shock resistance
· Digital audio interface (EBU), audio and data
· 2 and 4 times oversampling integrated digital filter, including fs mode
· Audio data peak level detection
· Kill interface for DAC deactivation during digital silence
· All TDA1301 (DSIC2) digital servo functions, plus extra high level functions
· Low focus noise
· Improved playability on ABEX TCD-721R, TCD-725 and TCD-714 discs
· Automatic closed-loop gain control available for focus and radial loops
· Pulsed sledge support
· Up to 80 kHz (8.4672 MHz crystal) or 16 MHz (16.9344 MHz crystal) jump performance
· Electronic damping of fast radial actuator during long jump
· Microcontroller loading LOW
· High level servo control option
· High level mechanism monitor
· Communication may be via TDA1301/SAA7345 compatible bus or I2C-bus
· On-chip clock multiplier allows the use of 8.4672 MHz crystal for up to 4 times speed mode or 16.9344 MHz crystal for up to 8 times-speed mode.


Pinout

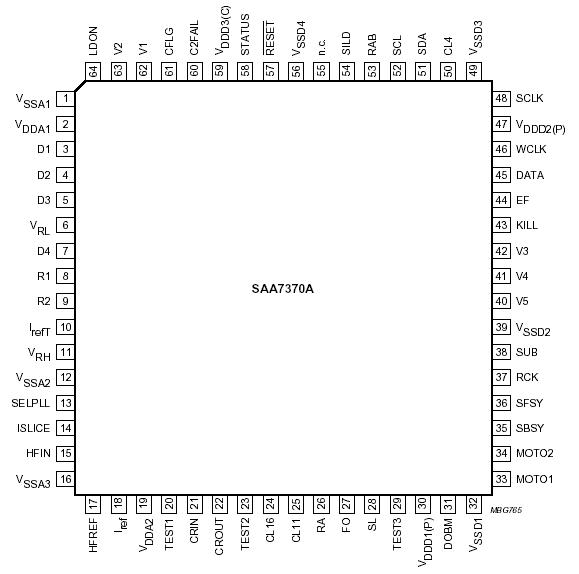

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage note 1 -0.5 +6.5 V
VI(max) maximum Input voltage (any input)   -0.5 VDD + 0.5 V
VO output voltage (any output)   -0.5 +6.5 V
VDDdiff difference between VDDA and VDDD   - ± 0.25 V
IO output current (continuous)   - ± 20 mA
IIK DC input diode current (continuous)   - ± 20 mA
Tamb operating ambient temperature   -40 ±85 °C
Tstg storage temperature   -55 +125 °C
Ves electrostatic handling(1) for all pins note 2 -2000 +2000 V
note 3 -200 +200 V
Notes
1. All VDD and VSS connections must be made externally to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor with a rise time of 15 ns.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 H series inductor.


Description

The SAA7370A (CD7) is a single chip combining the functions of a CD decoder IC and digital servo IC. The decoder part is based on the SAA7345 (CD6) with an improved error correction strategy. The servo part is based on the TDA1301T (DSIC2) with improvements incorporated, extra features have also been added.
