SAA7376

Features: · Single-speed mode· Full error correction strategy, t = 2 and e = 4· Full CD graphics interface· All standard decoder functions implemented digitally on chip· FIFO overflow concealment for rotational shock resistance· Digital audio interface (EBU), audio only· 2 and 4 times oversampling...

product image

SAA7376 Picture
See larger image
SeekIC No. : 004484069 Detail

SAA7376: Features: · Single-speed mode· Full error correction strategy, t = 2 and e = 4· Full CD graphics interface· All standard decoder functions implemented digitally on chip· FIFO overflow concealment fo...

SAA7376 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7376
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single-speed mode
· Full error correction strategy, t = 2 and e = 4
· Full CD graphics interface
· All standard decoder functions implemented digitally on chip
· FIFO overflow concealment for rotational shock resistance
· Digital audio interface (EBU), audio only
· 2 and 4 times oversampling integrated digital filter, including fs mode
· Audio data peak level detection
· Kill interface for DAC deactivation during digital silence
· All TDA1301 (DSIC2) digital servo functions, plus extra high-level functions
· Low focus noise
· Improved playability on ABEX TCD-721R, TCD-725 and TCD-714 discs
· Automatic closed loop gain control available for focus and radial loops
· Pulsed sledge support
· Microcontroller loading LOW
· High-level servo control option
· High-level mechanism monitor
· Communication may be via TDA1301/SAA7345 compatible bus or I2C-bus
· On-chip clock multiplier allows the use of 8.4672 MHz crystal.


Pinout

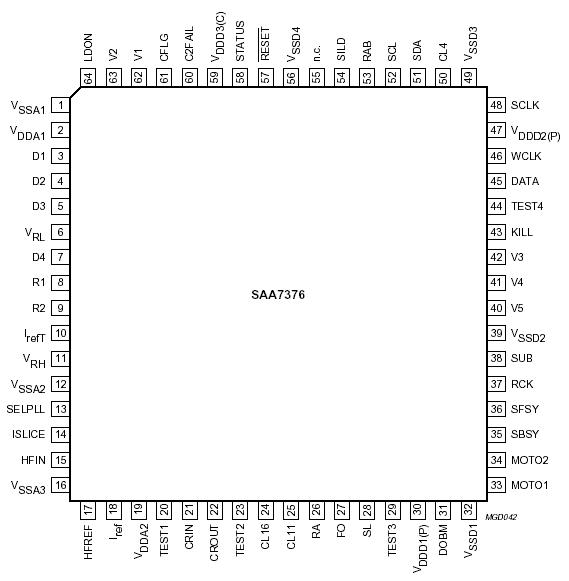

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage note 1 -0.5 +6.5 V
VI(max) maximum Input voltage (any input)   -0.5 VDD + 0.5 V
VO output voltage (any output)   -0.5 +6.5 V
VDDdiff difference between VDDA and VDDD   - ± 0.25 V
IO output current (continuous)   - ± 20 mA
IIK DC input diode current (continuous)   - ± 20 mA
Tamb operating ambient temperature   -10 ± 20 °C
Tstg storage temperature   -55 +125 °C
Ves electrostatic handling(1) for all pins note 2 -2000 +2000 V
note 3 -200 +200 V
Notes
1. All VDD and VSS connections must be made externally to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor with a rise time of 15 ns.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 mH series inductor.


Description

The SAA7376 is a single chip combining the functions of a CD decoder IC and digital servo IC. The decoder part is based on the SAA7345 (CD6) with an improved error correction strategy. The servo part of SAA7376 is based on the TDA1301T (DSIC2) with improvements incorporated, extra features have also been added.

Supply of this Compact Disc IC SAA7376 does not convey an implied license under any patent right to use this IC in any Compact Disc application.
