SAA7385

Application1.1 General· Single chip digital solution for an 8 × speed CD-ROM controller chip· 10 Mbytes/s NCR53CF94 equivalent SCSI controller included· High-speed 80C32 microcontroller with 256 × 8 scratch-pad SRAM included· High performance CD-ROM interface logic· 128 pin QFP package.1.2 53CF94 ...

product image

SAA7385 Picture
See larger image
SeekIC No. : 004484074 Detail

SAA7385: Application1.1 General· Single chip digital solution for an 8 × speed CD-ROM controller chip· 10 Mbytes/s NCR53CF94 equivalent SCSI controller included· High-speed 80C32 microcontroller with 256 × 8...

SAA7385 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7385
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

1.1 General

· Single chip digital solution for an 8 × speed CD-ROM controller chip
· 10 Mbytes/s NCR53CF94 equivalent SCSI controller included
· High-speed 80C32 microcontroller with 256 × 8 scratch-pad SRAM included
· High performance CD-ROM interface logic
· 128 pin QFP package.

1.2 53CF94 SCSI controller

· Separate clock input to allow operation up to the maximum 10 Mbytes/s
· Fast synchronous SCSI-2 compatible
· 24-bit transfer counter for single transfers up to 16 Mbytes
· High-speed 16-bit DMA interface to the buffer manager DRAM
· On-chip 48 mA SCSI drivers
· Software compatible with members of the 53C90 family
· Allows for SCAM support.

1.3 80C32 high-speed microcontroller

· 33.87 MHz full system speed operation
· Three timers/event counters
· Programmable full duplex serial channel
· Eight general purpose microcontroller I/O pins
· External program ROM.

1.4 Front-end interface logic

· Full 8 × speed hardware operation
· Block decoder
· Sector sequencer
· CRC checking of Mode 1 and Mode 2, Form 1 sectors
· 212 ms watch-dog timer
· Sub-code interface with synchronization
· C-flag interface for absolute time stamp.

1.5 Buffer controller

· Ten level arbitration logic
· Utilizes low cost 70 ns DRAMs
· Page mode DRAM access for high-speed error correction and SCSI data transfer
· Data organization by 3 kbyte frames
· 256 kbyte or 1 Mbyte DRAM supported.

1.6 Hardware third-level error correction

· Third-level correction provides superior performance in unfavourable conditions
· Full hardware error correction to reduce microcontroller overhead
· Corrections are automatically written to the DRAM frame buffer.

1.7 Additional product support

· All control registers mapped into 80C32 special function memory space
· Dedicated S2B interface UART
· Input clock synthesizer
· Red book audio pass through.


Pinout

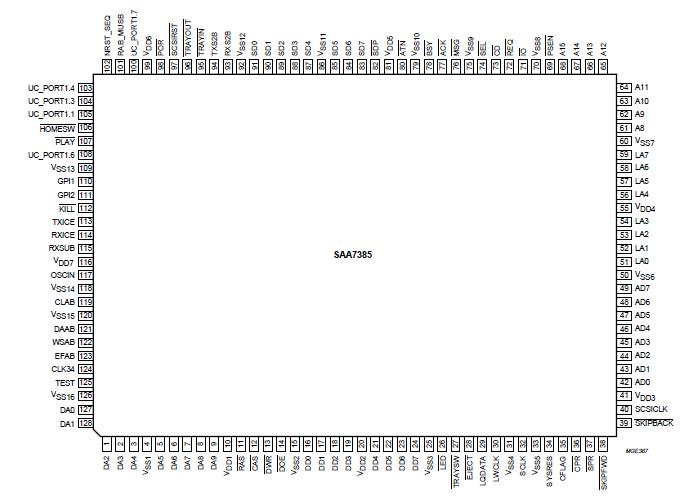

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD digital supply voltage -0.5 +7 V
Vi(max) maximum input voltage on any pin VSS - 0.5 VDD + 0.5 V
Vo output voltage on any output -0.5 +7 V
Tstg storage temperature -55 +150 °C



Description

The SAA7385 is a high integration ASIC that incorporates all of the digital electronics necessary to connect a CD
decoder to a SCSI host. An 80C32 microcontroller and a 53CF94 SCSI controller are embedded in the ASIC.

The following functions of SAA7385 are supported:

· Input clock doubler
· Block decoder
· CRC checking of Mode 1 and Mode 2, Form 1 sectors
· Red book audio pass through to SCSI
· Buffer manager
· Third-level error correction
· Sub-code and Q-channel support
· Dedicated S2B interface UART
· Embedded 80C32 microcontroller
· Embedded 53CF94 SCSI controller.

The SAA7385 uses a 33.8688 MHz clock and is capable of accepting data at eight times (n = 8 or 1.4 Mbytes/s) the
normal CD-ROM data rate.

Third level error correction hardware of SAA7385 is included to improve the correction efficiency of the system. The buffer manager hardware utilizes a ten-level arbitration unit and can stop the clock to the microcontroller to emulate a wait condition when necessary.

The SAA7385 comprises five major functional blocks:

· The 80C32 microcontroller is an industry standard core
· The 53CF94 is an industry standard core
· The front-end block connects to the external CD-60 based decoder and fully processes the incoming data stream to provide bytes of data that are stored in the external buffer
· The buffer manager block provides the address generation and timing control for the external DRAM buffer
· The ECC block performs the error correction functions in hardware on the data in the DRAM buffer.
