SAA7390

Features: 1.1 General· 8×speed CD-ROM, 4×speed Compact Disc-Recordable (CD-R) controller· 16.9 Mbytes/s burst rate to host controller· High performance CD-ROM and CD-R interface logic· 128 pin QFP package.1.2 Interface logic (CD-ROM operation)· Full 8´ speed hardware operation· Block decoder...

product image

SAA7390 Picture
See larger image
SeekIC No. : 004484076 Detail

SAA7390: Features: 1.1 General· 8×speed CD-ROM, 4×speed Compact Disc-Recordable (CD-R) controller· 16.9 Mbytes/s burst rate to host controller· High performance CD-ROM and CD-R interface logic· 128 pin QFP p...

SAA7390 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7390
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.1 General
· 8×speed CD-ROM, 4×speed Compact Disc-Recordable (CD-R) controller
· 16.9 Mbytes/s burst rate to host controller
· High performance CD-ROM and CD-R interface logic
· 128 pin QFP package.
1.2 Interface logic (CD-ROM operation)
· Full 8´ speed hardware operation
· Block decoder
· Sector sequencer
· CRC checking of Mode 1 and Mode 2, Form 1 sectors
· 212 ms watch-dog timer
· Sub-code interface with synchronization
· C-flag interface for absolute time stamp.
1.3 Hardware third-level error correction
· Third-level correction provides superior performance in unfavourable conditions
· Full hardware error correction to reduce microcontroller overhead
· Corrections are automatically written to the DRAM frame buffer.
1.4 Interface logic (CD-R operation)
· Block encoder (using a modified CDB2).
1.5 DRAM buffer controller (256 kbytes× 8,1 Mbyte×8, 4 Mbytes× 8)
· DRAM buffer manager
· Ten level arbitration logic
· Utilizes low cost 70 ns DRAMs
· Page mode DRAM access for high-speed error correction and host interface data transfers
· Data organization by 3 kbytes frames.
1.6 Additional product support
· Input clock doubler
· All control registers mapped into 80C32 special function memory space
· Red book audio pass through to host interface
· Sub-code and Q-channel support
· Dedicated Serial Peripheral Interface (SPI)
· Third level error correction and encoding
· 80C32 microcontroller interface
· 53CF90 or 53CF92A/B fast SCSI processor interface (may also use ATAPI processor).


Pinout

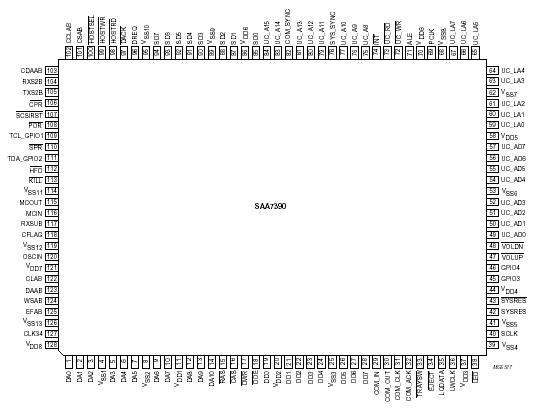

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD digital supply voltage -0.5 +7 V
Vi(max) maximum input voltage on any pin VSS - 0.5 VDD + 0.5 V
VO output voltage on any output -0.5 +7 V
Tstg storage temperature -55 +150 °C



Description

The SAA7390 is a high integration ASIC that incorporates all of the logic necessary to connect a CD-60 based decoder to a SCSI or ATAPI host. SAA7390 also supports a data path from the host to the CDCEP (compact disc encoder) for CD-R applications. An 80C32 microcontroller and a 53CF94/92A (or an ATAPI interface device) are required to provide the full block encode/decode functions. The following functions are supported:
· Input clock doubler
· Block encoder (using a modified CDB2)
· Block decoder
· CRC checking of Mode 1 and Mode 2, Form 1 sectors
· Red book audio pass through to SCSI or ATAPI
· Sub-code and Q-channel support
· Dedicated S2B interface UART
· Dedicated SPI interface UART
· Up to 4 Mbytes DRAM buffer manager
· Third-level error correction and encoding
· Automatic storage of audio and data
· 80C32 microcontroller interface
· 53CF90 or 53CF92A/B fast SCSI or Wapiti ATAPI processor interface.

The SAA7390 uses a 33.8688 MHz clock and is capable of accepting data at eight times (n = 8 or 1.4 Mbytes/s) the normal CD-ROM data rate. The minimum host burst rate capability of the SAA7390 is 5 Mbytes/s.

Third level error correction hardware of SAA7390 is included to improve the correction efficiency of the system. The buffer manager hardware utilizes a ten-level arbitration unit and can stop the clock to the static microcontroller to emulate a wait condition when necessary. The host interface is capable of burst rates to 16.9 Mbytes/s.
