SAA7710T

Features: · Two stereo I2S-bus digital input channels· Three stereo I2S-bus digital output channels· I2C-bus mode control· Up to 45 ms on-chip delay-line (fs = 44.1 kHz)· Optional clock divider for crystal oscillator· Package: SO32L· Operating supply voltage range: 4.5 to 5.5 V.PinoutSpecification...

product image

SAA7710T Picture
See larger image
SeekIC No. : 004484084 Detail

SAA7710T: Features: · Two stereo I2S-bus digital input channels· Three stereo I2S-bus digital output channels· I2C-bus mode control· Up to 45 ms on-chip delay-line (fs = 44.1 kHz)· Optional clock divider for ...

SAA7710T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7710T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Two stereo I2S-bus digital input channels
· Three stereo I2S-bus digital output channels
· I2C-bus mode control
· Up to 45 ms on-chip delay-line (fs = 44.1 kHz)
· Optional clock divider for crystal oscillator
· Package: SO32L
· Operating supply voltage range: 4.5 to 5.5 V.


Pinout

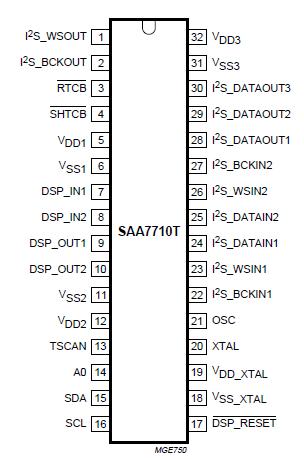

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD DC supply voltage   -0.5 +6.5 V
VDD voltage difference between two VDDx pins   - 550 mV
Vi(max) maximum input voltage   -0.5 VDD + 0.5 V
lIK DC input clamp diode current Vi < -0.5 V or
Vi > VDD + 0.5 V		 - 10 mA
lOK DC output clamp diode current output
type 4 mA		 Vo < -0.5 V or
Vo > VDD + 0.5 V		 - 20 mA
lO DC output source or sink current output
type 4 mA		 -0.5 V < Vo < VDD + 0.5 V - 20 mA
lDD DC output source or sink current output
type 4 mA		 -0.5 V < Vo < VDD + 0.5 V - 20 mA
lDD DC VDD supply current per pin   - 50 mA
lSS DC VSS supply current per pin   - 50 mA
VESD ESD sensitivity for all pins
human body model
machine model all pins except pin OSC
machine model pin OSC		 100 pF; 1500
200 pF; 2.5 H; 0
200 pF; 2.5 H; 0 		3000
300
250		 -
-
-		 V
V
V
LTCH latch-up protection CIC spec/test method 100 - mA
Ptot total power dissipation   - 700 mW
Tamb operating ambient temperature   -40 +85 °C
Tstg storage temperature   -65 +150 °C



Description

This data sheet describes the 104 ROM-code version of the SAA7710T chip. The SAA7710T chip is a high quality audio-performance digital add-on processor for digital sound systems. It provides all the necessary features for complete Dolby Pro Logic surround sound on chip. In addition to the Dolby Pro Logic surround function, this device also incorporates a 5-band parametric equalizer, a tone control section and a volume control. Instead of Dolby Pro Logic surround, the Hall/matrix surround and Incredible sound functions can be used together with the equalizer or tone control.
