Features:

· High precision digital processing with 9 or 10 bit input
· Different types of CCDs (PAL, NTSC and CIF) (progressive, interlaced and non-interlaced)
· Black offset preprocessing (including optical black offset control)
· RGB-separation (with contour and white clip signals generation)
· RGB-processing (colour space matrix, black control, knee and gamma)
· RGB-to-YUV conversion (including down-sampling filters)
· White balance control
· Y-processing (contour processing, false colour detector, filters and noise reduction)
· UV-processing (false colour correction and noise reduction)
· Digital output formatter (including CIF-formatter, DTV2, D1)
· Analog output preprocessing (including PAL/NTSC-encoder and DACs)
· Measurement engine (prepared for auto-exposure and auto-white balance features)
· Miscellaneous functions (e.g. switched mode power supply pulse generator, control DAC)
· VH-reference and window timing
· Serial interface (selectable I2C-bus or 80C51 UART interface)
· Mode control (including power management).


Application

· Desktop video applications
· Surveillance systems
· Video-phone systems.


Pinout

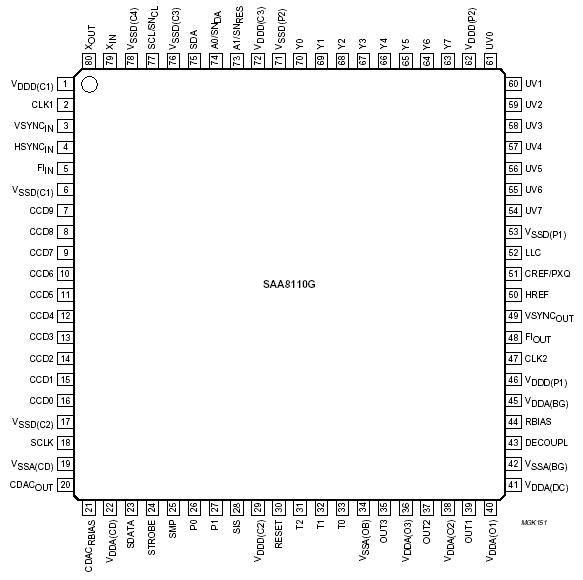

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDDD digital supply voltage -0.3 +7.0 V
VDDA analog supply voltage -0.3 +7.0 V
DVDDD-DDA supply voltage difference between the digital and the analog
supply voltages		 -0.1 +0.1 V
VI input voltage -0.3 VDD + 0.3 V
VO output voltage -0.3 VDD + 0.3 V
Ptot total allowed power dissipation at Tamb = 75 °C - VDD + 0.3 W
Tstg storage temperature -55 +150 °C
Tj junction temperature - 125 °C



Description

The SAA8110G is designed for desktop video applications (teleconferencing, video grabbing), surveillance and video-phone systems.

The SAA8110G may be applied together with an analog front-end (TDA8786 including CDS/AGC/ADC), a timing generator and a microcontroller as shown in Figs 18 and 19. Other configurations are also possible.

The CCD-sensor SAA8110G can be of PAL, NTSC or CIF type (with complementary mosaic colour filter). The maximum number of active pixels is limited to 800 samples/line. The 10-bits digital input may have a pixel frequency of up to 14.318 MHz.

The SAA8110G output data is available in a digital and an analog output format. Two digital output formats are selectable: DTV2 (CCIR-601 at the input pixel frequency) and D1 (CCIR-656 at twice the input pixel frequency). It is also possible to generate the CIF and QCIF formats as subsets from the processed CCD-image. The analog output is available in one of four formats: RGB, YUV, YC or CVBS. The SAA8110G includes a digital PAL/NTSC-encoder and 3 DACs for this purpose.

Two types of serial interface SAA8110G are selectable: a fast 400 kHz I2C-bus interface or a 80C51 UART interface (with bit rates from 1 Mbit/s up to 3.75 Mbit/s depending on the system clock used). The power dissipation of the SAA8110G can be optimized for each application using the built-in power management function.
