SAA8112HL

Features: ` High precision digital processing with 8- to 10-bit input` Embedded microcontroller (80C51 core based) for control loops Auto Optical Black (AOB), Auto White Balance (AWB) and Auto Exposure (AE)` Supports a large number of sensors` RGB Bayer or mosaic (yellow, magenta, green and cyan) ...

product image

SAA8112HL Picture
See larger image
SeekIC No. : 004484100 Detail

SAA8112HL: Features: ` High precision digital processing with 8- to 10-bit input` Embedded microcontroller (80C51 core based) for control loops Auto Optical Black (AOB), Auto White Balance (AWB) and Auto Expos...

SAA8112HL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA8112HL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High precision digital processing with 8- to 10-bit input
` Embedded microcontroller (80C51 core based) for control loops Auto Optical Black (AOB), Auto White Balance (AWB) and Auto Exposure (AE)
` Supports a large number of sensors
` RGB Bayer or mosaic (yellow, magenta, green and cyan) colour processing
` Black and white processing without loss of resolution
` Compatible with interlaced or progressive modes
` Processes up to 800 active pixels per line
` Optical black processing
` Programmable colour matrix
` Programmable R, G and B offsets
` Programmable Knee and Gamma correction
` Programmable edge enhancement
` False colour detection and correction
` Y and UV adjustable coring filters
` Flexible Measurement Engine (ME) with up to 16 measurements per frame in 16 programmable windows
` Programmable measurement conditions on Y, U and V
` 8-bit YUV output with selectable formats:
YUV 4 : 2 : 2 CCIR656 with signal embedded synchronization codes (SAV/EAV)
Selectable YUV output format 4 : 0 : 0, 4 : 1 : 1, 4 : 2 : 2 and 4 : 4 : 4 (according to IEEE-1394 based digital camera specification)
Basic output window cutter and scaler.
` Programmable output clock for switched mode power supply
` 3-wire/13-bit interface for control of the TDA878X family (CDS + AGS + 10-bit ADC).


Application

· PC camera
· Videophone
· Security camera
· Camcorder.


Pinout

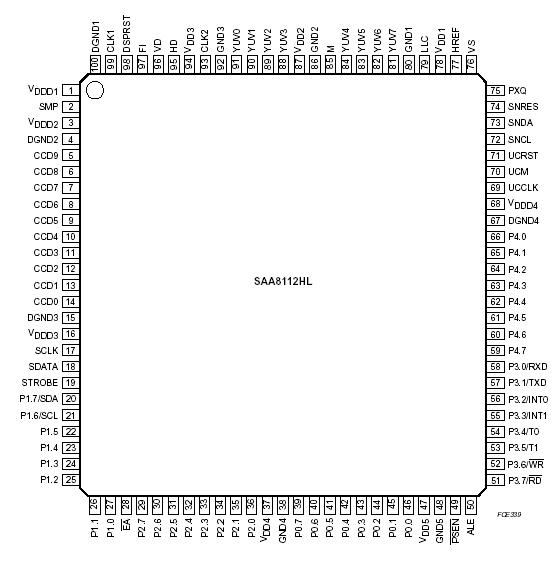

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDD digital supply voltage notes 1 and 2 -0.5 +4.0 V
VDGND digital supply voltage note 1 -0.5 +4.0 V
VI input signal voltage note 1 -0.5 VDDD + 0.5
VO output signal voltage note 1 -0.5 VDDD + 0.5 V
Tstg storage temperature note 1 - 55 +150 °C
Tamb operating ambient temperature note 1 0 70 °C
Tj junction temperature note 1 -40 +125 °C



Description

The SAA8112HL is a powerful and versatile 10-bit digital processor for video cameras. It processes the digitized sensor data and converts it to a high quality, multi-format and YUV digital signal. In addition, the SAA8112HL performs programmable statistical measurements on the video stream allowing, for instance, a precise measurement of the exposure or the white balance levels.

An 80C51 microcontroller derivative with five I/O ports, I2C-bus, 512 bytes of RAM and 32 kbytes of program memory is also embedded in the SAA8112HL.

The microcontroller SAA8112HL is used in combination with the Digital Signal Processing (DSP) measurement capabilities to provide advanced AE, AWB and AOB. The microcontroller SAA8112HL may also be used to control other devices in the camera, for example a USB or a 1394 interface.

In the following description of the SAA8112HL, four main functional blocks are given (see Fig.1):
· The DSP block
· The DSP ME block
· The microcontroller block
· The timing, interface and miscellaneous functions block.
