SBT5401F

Features: • high collector breakdown voltage : VCBO = -160V, VCEO = -150V• Low collector saturation voltage : VCE(sat)=-0.5V(MAX.)• Complementary pair with SBT5551FPinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO -160 V Collec...

product image

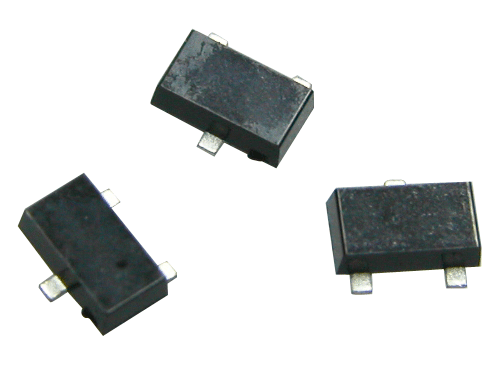

SBT5401F Picture
See larger image
SeekIC No. : 004485325 Detail

SBT5401F: Features: • high collector breakdown voltage : VCBO = -160V, VCEO = -150V• Low collector saturation voltage : VCE(sat)=-0.5V(MAX.)• Complementary pair with SBT5551FPinoutSpecificat...

SBT5401F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SBT5401F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• high collector breakdown voltage : VCBO = -160V, VCEO = -150V
• Low collector saturation voltage : VCE(sat)=-0.5V(MAX.)
• Complementary pair with SBT5551F






Pinout






Specifications

Characteristic

 Symbol Ratings Unit
Collector-Base voltage VCBO -160 V
Collector-Emitter voltage VCEO -150 V
Emitter-base voltage VEBO -5 V
Collector current IC -600 mA
Collector dissipation PC* 200 mW
Junction temperature Tj 150 °C
Storage temperature Tstg -55~150 °C





Description

Bipolar transistors, SBT5401F  also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)

• General purpose amplifier
• High voltage application
