Part Number: SC14402

MFG: NSC

Package Cooled: STK

D/C: 0533+

Description: The SC14402 is a 3.0 Volt CMOS chip optimized to handle all the audio, signal and data processing needed within a DECT ...

SC14402 General Description

The SC14402 is a 3.0 Volt CMOS chip optimized to handle all the audio, signal and data processing needed within a DECT handset. An ADPCM transcoder, a very low power CODEC and Analog Frontend is integrated. Direct connections towards microphone and a (dynamical) loudspeaker are provided.

The SC14402 is designed such that it is compatible with many radio interfaces.

A dedicated TDMA controller handles all physical layer slot formats and radio control.

National Semiconductors standard CompactRISCTM CR16A 16 bit microcontroller with external ROM takes care of all the higher protocol stack.

SC14402 Features

· Integrated DECT Baseband transceiver optimized for GAP handsets according to ETS 300 175-2, 175-3 & 175-8.
· 2.95 to 3.6 Volt operating voltage.
· Very low power in active and paging mode.
· Max 5V battery input.
· Embedded 16 bit CompactRISCTM Micro Controller. (CR16A) with programmable clock speeds.
· ACCESSBUSTM or MICROWIRETM interfaces can be handled.
· 4 kByte on-chip Data Memory.
· One full duplex ADPCM transcoder.
· On-chip 14-bit linear CODEC.
· 8 upto 38 dB gain differential microphone input buffer.
· 100 W loudspeaker driver.
· Software controlled gain on audio input and output.
· On-chip gaussian Modulator.
· Peak hold ADC for RSSI measurement.
· Three general purpose inputs can be multiplexed on an 8 bit ADC with selectable ranges.
· Advanced battery management unit
· On board dedicated TDMA instruction co-processor (DiP).
· Eight programmable control signals for radio front end.
· Serial interface to control radio front end circuitry.
· Full support of all data formats.

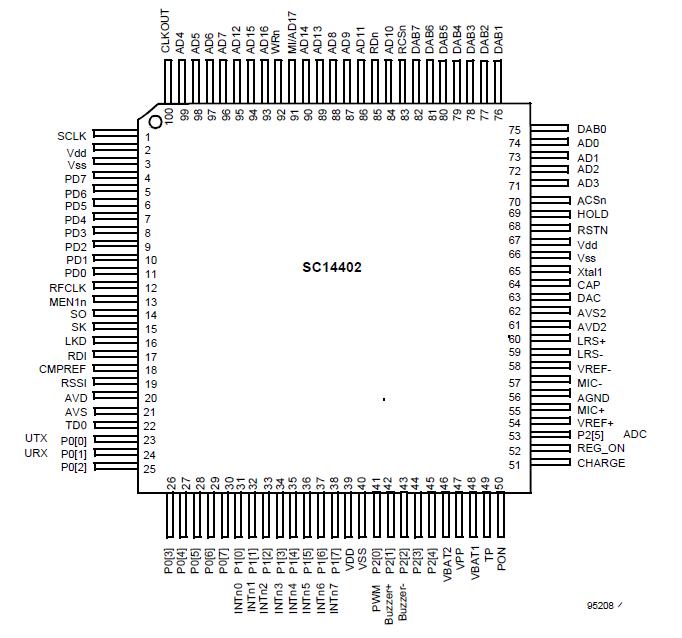

SC14402 Connection Diagram

SC14402 datasheet

SC14402
PDF/DataSheet Download

Datasheet: SC14402
File Size: 59884 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download
