Product Details

Description

Features:

` High efficiency 87%
` Power-saving shutdown mode (7A typical)
` Internal 0.8A switch
` 120kHz switching rate
` Adjustable switch current limit
` On-chip low battery detector

Application

· Pocket organizers
· Electronic dictionaries
· Cameras
· Pagers
· Bar code scanners
· LCD displays
· Battery backup supplies
· Portable instruments

Pinout

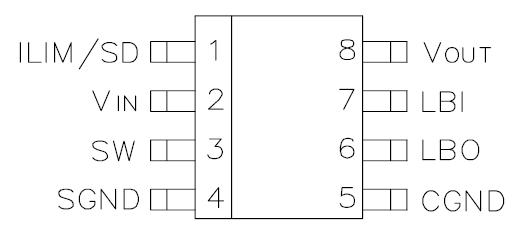

Connection Diagram

Specifications

Parameter	Symbol	Maximum	Units
Supply Voltage	V_IN	7.0	V
Operating Temperature Range	T_A	0 to 70	°C
Storage Temperature Range	T_STG	-65 to 125	°C

Description

The SC1633 is a high efficiency step up DC-DC converter. Only four external components are required to deliver a fixed voltage of 3V, 3.3V, or 5V. Efficiency beyond 83% can be easily achieved at 70mA load with 2.2V to 3V input voltages.

A logic-controlled shutdown mode is provided for power saving. Switch current limit can be programmed with a resistor. The low battery detector can be configured as a linear regulator or a burst mode controller providing extremely low supply current operation.

A switching rate of 120kHz reduces the inductor size - inductors of 47H to 150H inductance are recommended for most applications.
