Features: *5 V, 3.3 V and 2.5 V operation*Industrial temperature range*After reset, all registers are identical to the typical 16C450 register set*Capable of running with all existing generic 16C450 software*Pin compatibility with the industry-standard ST16C450/550, TL16C450/550, PC16C450/550*Up t...
SC16C650A: Features: *5 V, 3.3 V and 2.5 V operation*Industrial temperature range*After reset, all registers are identical to the typical 16C450 register set*Capable of running with all existing generic 16C450...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Conditions | Min | Max | Unit |
VCC | supply voltage | - | 7 | V | |
Vn | voltage at any pin | GND - 0.3 | VCC + 0.3 | V | |
Tamb | operating temperature | -40 | +85 | ||
Tstg | storage temperature | -65 | +150 | ||
Ptot(pack) | total power dissipation per package |
- | 500 | mW |
The SC16C650A is a Universal Asynchronous Receiver and Transmitter (UART) used for serial data communications. Its principal function is to convert parallel data into serial data, and vice versa. The UART can handle serial data rates up to 3 Mbits/s.
The SC16C650A is pin compatible with the ST16C650A and it will power-up to be functionally equivalent to the 16C450. Programming of control registers enables the added features of the SC16C650A. Some of these added features are the 32-byte receive and transmit FIFOs, automatic hardware or software flow control and infrared encoding/decoding. The selectable auto-flow control feature significantly reduces software overload and increases system efficiency while in FIFO mode by automatically controlling serial data flow using RTS output and CTS input signals. The SC16C650A also provides DMA mode data transfers through FIFO trigger levels and the RXRDY and TXRDY signals. On-board status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loop-back capability allows on-board diagnostics.

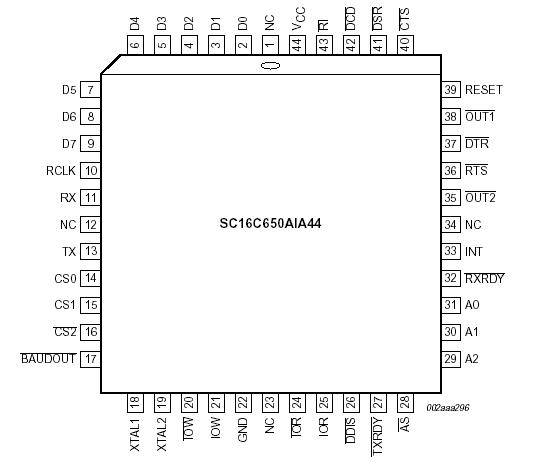

The SC16C650A operates at 5 V,3.3 V and 2.5 V, and the industrial temperature range, and is available in plastic DIP40, PLCC44, and LQFP48 packages.
