SC16C652B

Features: · 2 channel UART· 5 V, 3.3 V and 2.5 V operation·5 V tolerant inputs· Industrial temperature range (-40 °C to +85 °C)· Pin and functionally compatible to 16C2450 in LQFP48 package, and softwarecompatible with industry standard 16C450, 16C550, and SC16C650· Up to 5 Mbit/s data rate at 5 V...

product image

SC16C652B Picture
See larger image
SeekIC No. : 004485526 Detail

SC16C652B: Features: · 2 channel UART· 5 V, 3.3 V and 2.5 V operation·5 V tolerant inputs· Industrial temperature range (-40 °C to +85 °C)· Pin and functionally compatible to 16C2450 in LQFP48 package, and sof...

SC16C652B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC16C652B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2 channel UART
· 5 V, 3.3 V and 2.5 V operation
·5 V tolerant inputs
· Industrial temperature range (-40 °C to +85 °C)
· Pin and functionally compatible to 16C2450 in LQFP48 package, and software
compatible with industry standard 16C450, 16C550, and SC16C650
· Up to 5 Mbit/s data rate at 5 V and 3.3 V, and 3 Mbit/s at 2.5 V
· 32-byte transmit FIFO to reduce the bandwidth requirement of the external CPU
· 32-byte receive FIFO with error flags to reduce the bandwidth requirement of the
external CPU
· Independent transmit and receive UART control
· Four selectable Receive and Transmit FIFO interrupt trigger levels
· Automatic software (Xon/Xoff) and hardware (RTS/CTS) flow control
· Programmable Xon/Xoff characters
· Software selectable Baud Rate Generator
· Standard modem interface or infrared IrDA encoder/decoder interface
· Supports IrDA version 1.0 (up to 115.2 kbit/s)
· Sleep mode
· Standard asynchronous error and framing bits (Start, Stop, and Parity Overrun
Break)
· Transmit, Receive, Line Status, and Data Set interrupts independently controlled
· Fully programmable character formatting:
- 5, 6, 7, or 8-bit characters
- Even, Odd, or No-Parity formats
- 1, 11/2, or 2-stop bit
- Baud generation (DC to 5 Mbit/s)
· False start-bit detection
· Complete status reporting capabilities
· 3-State output TTL drive capabilities for bi-directional data bus and control bus
· Line Break generation and detection
· Internal diagnostic capabilities:
- Loop-back controls for communications link fault isolation
· Prioritized interrupt system controls
· Modem control functions (CTS, RTS, DSR, DTR, RI, CD).


Pinout

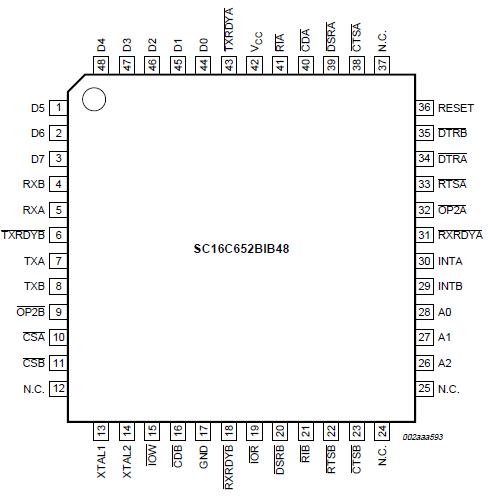

Connection Diagram


Description

The SC16C652B is a 2 channel Universal Asynchronous Receiver and Transmitter (UART) used for serial data communications. Its principal function is to convert parallel data into serial data and vice versa. The UART can handle serial data rates up to 5 Mbit/s. The SC16C652B is pin compatible with the SC16C2550. It will power-up to be functionally equivalent to the 16C2450. The SC16C652B provides enhanced UART functions with 32-byte FIFOs, modem control interface, DMA mode data transfer, and IrDA encoder/decoder. The DMA mode data transfer is controlled by the FIFO trigger levels and the TXRDY and RXRDY signals. On-board status registers provide the user with error indications and operational status. System interrupts and modem control features may be tailored by software to meet specific user requirements. An internal loop-back capability allows on-board diagnostics.Independent programmable baud rate generators are provided to select transmit and receive baud rates.

The SC16C652B operates at 5 V, 3.3 V and 2.5 V and the Industrial temperature range, and is available in plastic LQFP48 and very small (Micro-UART) HVQFN32 packages
