SC18IS601

Features: · SPI slave interface· SPI Mode 3· Master I2C-bus controller· General Purpose Input/Output (GPIO) pins: 4 (SC18IS600); 3 (SC18IS601)· Two quasi-bidirectional I/O pins· 5 V tolerant I/O pins· High-speed SPI:· Up to 3 Mbit/s (SC18IS601)· Up to 1.2 Mbit/s (SC18IS600)· High-speed I2C-bus: 40...

product image

SC18IS601 Picture
See larger image
SeekIC No. : 004485544 Detail

SC18IS601: Features: · SPI slave interface· SPI Mode 3· Master I2C-bus controller· General Purpose Input/Output (GPIO) pins: 4 (SC18IS600); 3 (SC18IS601)· Two quasi-bidirectional I/O pins· 5 V tolerant I/O pin...

SC18IS601 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC18IS601
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· SPI slave interface
· SPI Mode 3
· Master I2C-bus controller
· General Purpose Input/Output (GPIO) pins: 4 (SC18IS600); 3 (SC18IS601)
· Two quasi-bidirectional I/O pins
· 5 V tolerant I/O pins
· High-speed SPI:
· Up to 3 Mbit/s (SC18IS601)
· Up to 1.2 Mbit/s (SC18IS600)
· High-speed I2C-bus: 400 kbit/s
· 96-byte transmit buffer
· 96-byte receive buffer
· 2.4 V to 3.6 V operation
· Power-down mode with WAKEUP pin
· Oscillator: internal (SC18IS600); external (SC18IS601)
· Active LOW interrupt output
· Available in very small TSSOP16 package

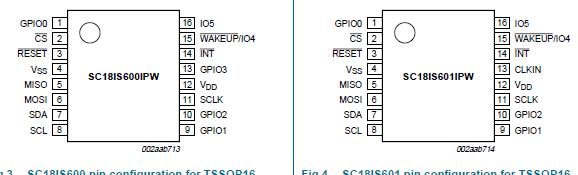

Pinout

Connection Diagram


Description

The SC18IS600/601 is designed to serve as an interface between the standard SPI of a host (microcontroller, microprocessor, chip set, etc.) and the serial I2C-bus. This allows the host to communicate directly with other I2C-bus devices. The SC18IS600/601 can operate as an I2C-bus master-transmitter or master-receiver. The SC18IS600/601 controls all the I2C-bus specific sequences, protocol, arbitration and timing.

The key distinction between the SC18IS600 and the SC18IS601 lies in the clock source:internal (SC18IS600) versus external (SC18IS601).
