Purchase SC35VB80, In-stock SC35VB80 From SeekIC.
- Table of contents:
SC35VB80
-
Suppliers
DataSheet
General Description
SC35VB80 Maximum Ratings
|
CHARACTERISTICS |
SYMBOL |
SC35VB80 |
UNIT |
| Maximum Recurrent Peak Reverse Voltage |
VRRM |
800 |
V |
| Maximum RMS Bridge Input Voltage |
VRMS |
560 |
V |
| Maximum Average Forward Rectified Output Current @ TC=55 |
I(AV) |
35 |
A |
| Peak Forward Surge Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load |
IFSM |
350 |
A |
| Current Squared time (1ms<t<10ms) |
I2t |
300 |
A2S |
| Dielectric Strength |
Vdis |
2000 |
V |
| Mounting Torque |
TOR |
0.8 |
N.m |
| Maximum Forward Voltage Drop Per Element at 12.5 A Peak |
VF |
1.05 |
V |
| Maximum Reverse Current at Rated DC Blocking Voltage Per Element @ TA=25 |
IR |
10 |
A |
| Typical Thermal Resistance (Note1) |
RJC |
Max:0.7 |
/W |
| Operating Temperature Range |
TJ |
-55 to +150 |
|
| Storage Temperature Range |
TSTG |
-55 to +150 |
SC35VB80 Features
·Surge overload -350 amperes peak
·Low forward voltage drop
·Mounting position :Any
·Weight: 37g
·Low forward voltage drop
·Mounting position :Any
·Weight: 37g
SC3
PDF/DataSheet Download
- Datasheet: SC3
- File Size: 605494 KB
- Manufacturer: Welwyn Components Limited
- Click here to Download
- ·SC300
- VISAY [Vishay Siliconix]
- Strain Measuring Systems Short Course
- 102772 KB
- ·SC3010
- ETC [ETC]
- INFRARED REMOTE CONTROL TRANSMITTER
- 240952 KB
- ·SC3010S
- ETC [ETC]
- INFRARED REMOTE CONTROL TRANSMITTER
- 240952 KB
- ·SC3011B-1
- RF Monolithics, Inc
- 600.0 MHz Differential Sine-Wave Clock
- 76074 KB
- ·SC3015B
- RF Monolithics, Inc
- 550.0 MHz Differential Sine-Wave Clock
- 76653 KB
- ·SC3017B
- RF Monolithics, Inc
- 400.0 MHz Differential Sine-Wave Clock
- 76116 KB
- ·sc3018b
- RFM [RF Monolithics, Inc]
- Quartz SAW Frequency Stability
- 105418 KB
- ·SC3019B
- RF Monolithics, Inc
- 500.0 MHz Differential Sine-Wave Clock
- 76096 KB
SC35VB80 Relative Products

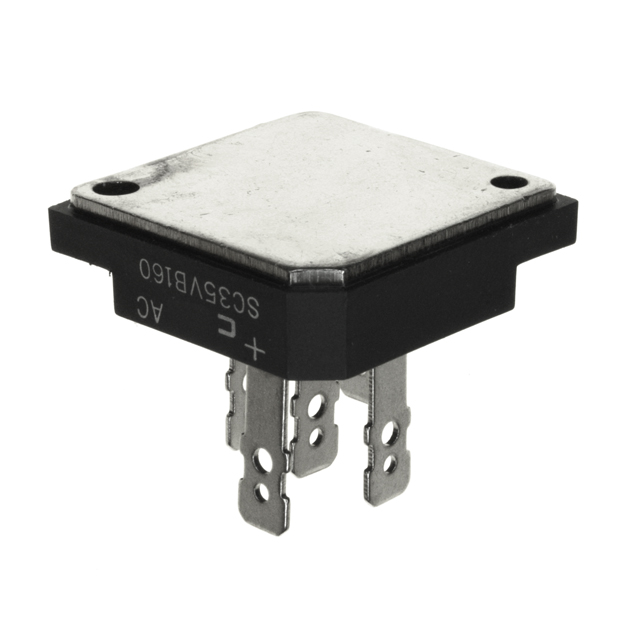

SC35VB160-G
