SC660E

Voltage Relative to V_SS........................ -0.3V
Voltage Relative to V_DD ........................ 0.3V
Storage Temperature .................. -65ºC to + 150ºC
Operating Temperature .................. -40ºC to +85ºC
Maximum Power Supply ......................... 7V

This device contains circuitry to protect the inputs against damage due to high static voltages or electric field; however, precautions should be taken to avoid
application of any voltage higher than the maximum rated voltages to this circuit. For proper operation, Vin and Vout should be constrained to the range:
V_SS<(Vin or Vout)<V_DD
Unused inputs must always be tied to an appropriate logic voltage level (either VSS or V_DD).

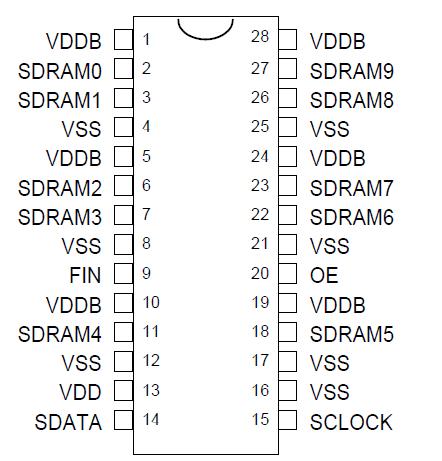

The SC660E is a high fanout system clock distributor. Its primary application is to create the large quantity of clocks needed to support a wide range of clock loads that are referenced to a single existing clock. Loads of up to 30 pF are supported. Primary application of this component is where long traces are used to transport clocks from their generating devices to their loads. The creation of EMI and the degradation of waveform rise and fall times is greatly reduced by running a single reference clock trace to this device and then using it to regenerate the clock that drives shorter traces by using the SC660 to generate the clocks at the target devices EMI is therefore minimized and board real estate is saved.
