SCANPSC110F

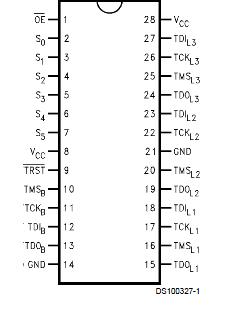

True IEEE1149.1 hierarchical and multidrop addressable capability
The 6 slot inputs support up to 59 unique addresses, a Broadcast Address, and 4 Multi-cast Group Addresses
3 IEEE 1149.1-compatible configurable local scan ports
Mode Register allows local TAPs to be bypassed, selected for insertion into the scan chain individually, or serially in groups of two or three
32-bit TCK counter
16-bit LFSR Signature Compactor
Local TAPs can be tri-stated via the OE input to allow an alternate test master to take control of the local TAPs
The IP version of this device supports features not described in this datasheet such as 8 slot inputs for enhanced address capability and additional      instructions. For a completed description of the additional instructions supported, refer to the SCANPSC110 supplemental datasheet.

The SCANPSC110F Bridge extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a hierarchical approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANPSC110F Bridge supports up to 3 local scan rings which can be accessed individually or combined serially. Addressing is accomplished by loading the instruction register with a value matching that of the Slot inputs. Backplane and inter-board testing can easily be accomplished by parking the local TAP Controllers in one of the stable TAP Controller states via a Park instruction. The 32-bit TCK counter enables built in self test operations to be performed on one port while other scan chains are simultaneously tested.
