SCRN239R

CAP FILM 20UF 1KVAC SCREW

product image

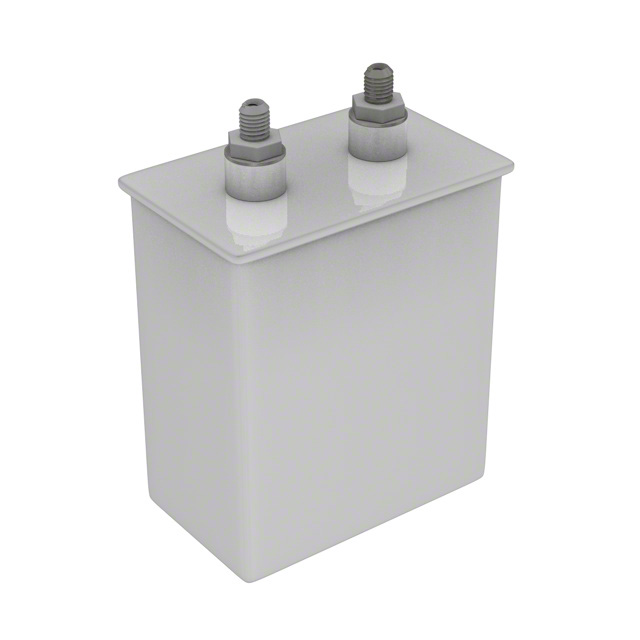

SCRN239R Picture
See larger image
SeekIC No. : 002967107 Detail

SCRN239R: CAP FILM 20UF 1KVAC SCREW

SCRN239R Data Sheet

floor Price/Ceiling Price

US $ 107.74~107.74 / Piece | Get Latest Price
Part Number:
SCRN239R
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~5
  • Unit Price
  • $107.74
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: SCR Manufacturer: Cornell Dubilier Electronics (CDE)
Capacitance: 20µF Voltage Rating - AC: 1000Vpk (1kV)
Voltage Rating - DC: - Dielectric Material: Paper, Metallized
Tolerance: ±10% ESR (Equivalent Series Resistance): -
Operating Temperature: -40°C ~ 65°C Mounting Type: Chassis Mount
Package / Case: Radial, Can - Screw Terminals Size / Dimension: 4.560" L x 2.840" W (115.82mm x 72.14mm)
Height - Seated (Max): 5.190" (131.83mm) Mounting Style : Stud
Termination: Screw Terminals Lead Spacing: 2.000" (50.80mm)
Features: High Frequency and High Stability Applications: -

Description

ESR (Equivalent Series Resistance): -
Applications: -
Tolerance: ±10%
Features: High Frequency and High Stability
Packaging: Bulk
Voltage Rating - DC: -
Mounting Type: Chassis Mount
Capacitance: 20µF
Termination: Screw Terminals
Manufacturer: Cornell Dubilier Electronics (CDE)
Dielectric Material: Paper, Metallized
Package / Case: Radial, Can - Screw Terminals
Series: SCR
Operating Temperature: -40°C ~ 65°C
Voltage Rating - AC: 1000Vpk (1kV)
Size / Dimension: 4.560" L x 2.840" W (115.82mm x 72.14mm)
Height - Seated (Max): 5.190" (131.83mm)
Lead Spacing: 2.000" (50.80mm)


Parameters:

Technical/Catalog InformationSCRN239R
VendorCornell Dubilier Electronics (CDE)
CategoryCapacitors
Capacitance20F
Voltage - Rated 1000V (1kV)
Tolerance±10%
Dielectric MaterialPaper Film
Package / CaseScrew Terminals
PackagingBulk
Maximum Temperature-40°C ~ 65°C
Lead Spacing-
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.-
Mounting TypeChassis Mount
FeaturesRF, High Frequency
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names SCRN239R
SCRN239R
