SD103ATW

Features: Low Forward Voltage DropGuard Ring Construction for Transient ProtectionFast SwitchingLow Leakage CurrentThree Fully Isolated Schottky DiodesLow Forward Voltage DropGuard Ring Construction for Transient ProtectionFast SwitchingLow Leakage CurrentThree Fully Isolated Schottky DiodesSpecif...

product image

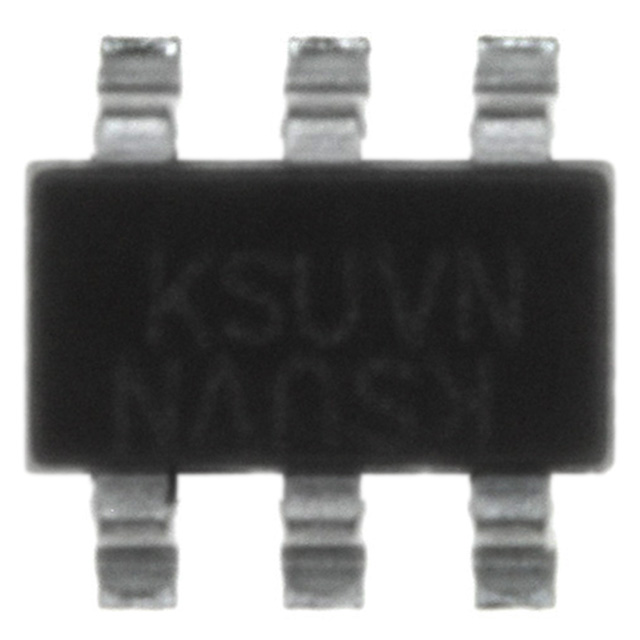

SD103ATW Picture
See larger image
SeekIC No. : 004486222 Detail

SD103ATW: Features: Low Forward Voltage DropGuard Ring Construction for Transient ProtectionFast SwitchingLow Leakage CurrentThree Fully Isolated Schottky DiodesLow Forward Voltage DropGuard Ring Construction...

SD103ATW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD103ATW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Fast Switching
Low Leakage Current
Three Fully Isolated Schottky Diodes

Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Fast Switching
Low Leakage Current
Three Fully Isolated Schottky Diodes




Specifications

Characteristic Symbol SD103ATW Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 40 V
RMS Reverse Voltage VR(RMS) 28 V
Forward Continuous Current (Note 1) IFM 350 mA
Average Rectified Current (Note 1) IO 175 mA
Non-Repetitive Peak Forward Surge Current
(Note 1) @ t 10ms		 IFSM 1.0 A
Power Dissipation Pd 200 mW
Thermal Resistance, Junction to Ambient Air RJA 500 /W
Operating and Storage Temperature Range Tj, TSTG -55 to +125


Part Number SD103ATW
Power Rating (mW) 200
Peak Repetitive Reverse Voltage VRRM (V) 40
Forward Continuous Current IFM (mA) 350
Forward Voltage Drop VF (V) 0.37
@ IF (mA) 20
Max Reverse Current IR (µA) 5
@ VR (V) 30
Capacitance CTOT (typ) (pF) 50


Characteristic Symbol SD103ATW Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 40 V
RMS Reverse Voltage VR(RMS) 28 V
Forward Continuous Current (Note 1) IFM 350 mA
Average Rectified Current (Note 1) IO 175 mA
Non-Repetitive Peak Forward Surge Current
(Note 1) @ t 10ms		 IFSM 1.0 A
Power Dissipation Pd 200 mW
Thermal Resistance, Junction to Ambient Air RJA 500 /W
Operating and Storage Temperature Range Tj, TSTG -55 to +125


Part Number SD103ATW
Power Rating (mW) 200
Peak Repetitive Reverse Voltage VRRM (V) 40
Forward Continuous Current IFM (mA) 350
Forward Voltage Drop VF (V) 0.37
@ IF (mA) 20
Max Reverse Current IR (µA) 5
@ VR (V) 30
Capacitance CTOT (typ) (pF) 50
