SD1414

Application836 MHz12.5 VOLTSCOMMON BASEPOUT = 45 W MIN. WITH 4.7 dB GAIN PinoutSpecifications Symbol Parameter Value Unit VCBO Collector-Base Voltage 36 V VCEO Collector-Emitter Voltage 18 V VCES Collector-Emitter Voltage 36 V VEBO ...

product image

SD1414 Picture
See larger image
SeekIC No. : 004486333 Detail

SD1414: Application836 MHz12.5 VOLTSCOMMON BASEPOUT = 45 W MIN. WITH 4.7 dB GAIN PinoutSpecifications Symbol Parameter Value Unit VCBO Collector-Base Voltage 36 V VCEO ...

SD1414 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD1414
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

836 MHz
12.5 VOLTS
COMMON BASE
POUT = 45 W MIN. WITH 4.7 dB GAIN

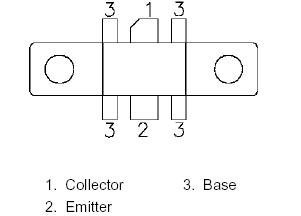

Pinout

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCBO

Collector-Base Voltage

36

V

VCEO

Collector-Emitter Voltage

18

V

VCES

Collector-Emitter Voltage

36

V

VEBO

Emitter-Base Voltage

4.0

V

IC

Device Current

9.0

A

PDISS

Power Dissipation

150

W

TJ

Junction Temperature

+200

°C

TSTG

Storage Temperature

- 65 to +150

°C




Description

The SD1414 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed for amplifier applications in the 806 - 866 MHz frequency range. Internal input matching and common base configuration assure optimum gain and efficiency across the entire frequency band. The SD1414 withstands infinite VSWR at rated power output.
