SD2902 Selling Leads, Price trend , STMicroelectronics, SD2902 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00220530 Detail

SD2902: Transistors RF MOSFET Power N-Ch 65 Volt 2.5 Amp

SD2902 Data Sheet

Get Latest Price

Part Number:: SD2902
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD2900 evaluate
Transistors RF MOSFET Power N-Ch 65 Volt 0.9 Amp
SD290-11-31-241 evaluate
US $77.23 - 93.32 / Piece

PHOTODIODE LOCAP 7.6X5.6MM TO-8
SD290-12-22-241 evaluate
US $105.51 - 122.39 / Piece

PHOTODIODE BLUE 5.6X7.6MM TO-8

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	N-Channel
Frequency :	500 MHz	Gain :	13.5 dB at 400 MHz
Output Power :	15 W	Drain-Source Breakdown Voltage :	65 V
Continuous Drain Current :	2.5 A	Gate-Source Breakdown Voltage :	+/- 20 V
Maximum Operating Temperature :	+ 150 C	Package / Case :	M113
Packaging :	Bulk

Description

Configuration : Single
Transistor Polarity : N-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 65 V
Gate-Source Breakdown Voltage : +/- 20 V
Packaging : Bulk
Frequency : 500 MHz
Output Power : 15 W
Continuous Drain Current : 2.5 A
Package / Case : M113
Gain : 13.5 dB at 400 MHz

Pinout

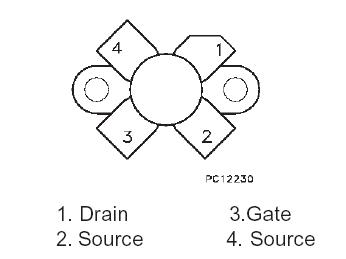

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	65	V
V_DGR	Drain-Gate Voltage (R_GS = 1M)	65	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	2.5	mA
P_DISS	Power Dissipation	58.3	W
T_j	Max. Operating Junction Temperature	200
T_STG	Storage Temperature	-65 to 150

Description

The SD2902 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 28 V DC large signal applications up to 500 MHz

Parameters:

Technical/Catalog Information	SD2902
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	65V
Current Rating	2.5A
Package / Case	M113
Packaging	Bulk
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD2902 SD2902 497 5463 ND 4975463ND 497-5463

Customers Who Bought This Item Also Bought

SD2918 RF POWER TRANSISTORS HF/VHF/UHF N-CHANNEL MOSFETs
US $$37.00 - 40.00 / Piece

Supply Ability:100Day

View details
SD2931-10 SD2931 RF POWER TRANSISTORS HF/VHF/UHF N-CHANNEL MOSFETs - S
US $$26.00 - 30.00 / Piece

Supply Ability:500Week

View details
SD2931-11 RF Power Transistor FOR HOT SALE high-quality
US $$30.00 - 35.00 / Piece

Supply Ability:100Week

View details
SD2931-11
US $$10.00 - 100.00 / Piece

Supply Ability:10000Week

View details
SD2932
US $$95.00 - 100.00 / Piece

Supply Ability:10000Week

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

SD2902

product image

floor Price/Ceiling Price

Price Break

Month Sales

Rating

Payment Methods

Recent History

Quick Details

Description

Customers Who Bought This Item Also Bought

Sensors, Transducers(2877)

LED Products(5882)

Optoelectronics(3638)

Motors, Solenoids, Driver Boards/Modules(2035)

Semiconductor Modules(17785)

Undefined Category(248)
